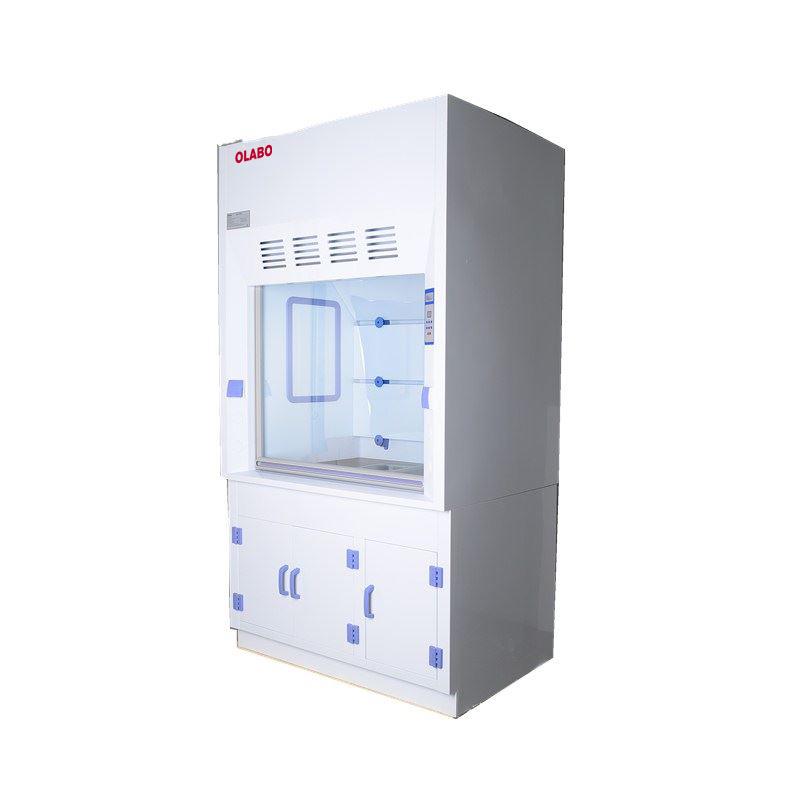

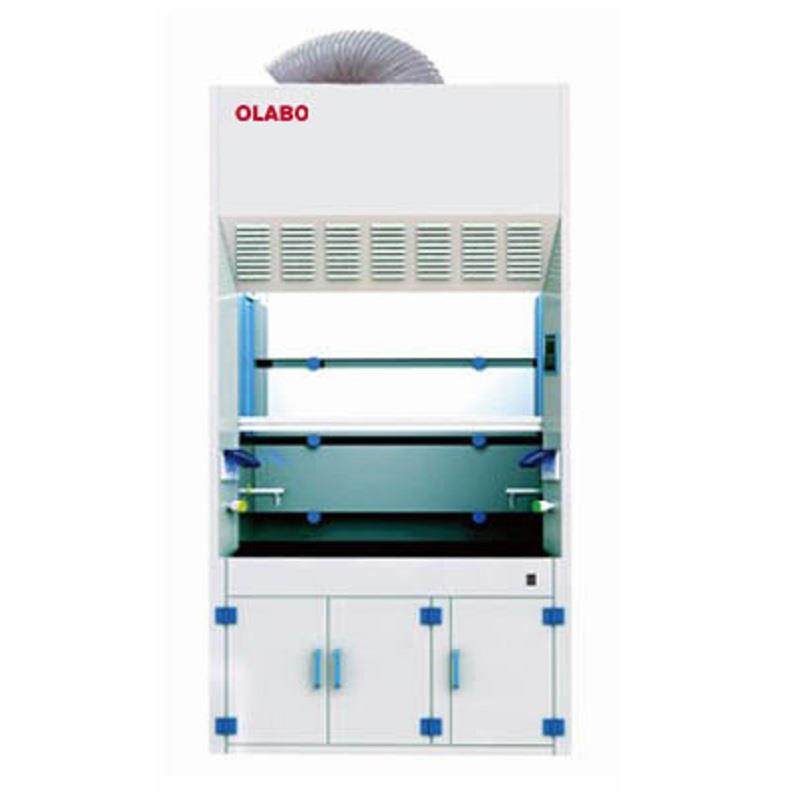

OLABO PP Fume Hood
Product Introduction
Fume Hood is used to protect lab environment and operator during general chemical applications. It actively protects operator from inhaling toxic vapors and dramatically reduces the risk of fire and explosion. By installing proper filter, it can also protect environment.
PP Fume Hood has strong acid-base resistance and good weather resistance.It is suitable for experiments with strong acidity and alkalinity.
Advantage
1.It is safer to use anti-corrosive water tap.
2.Microprocessor control system, LED display
3.With memory function in case of power-failure
4.Made of porcelain white PP, resistant to acid, alkali and anti-corrosion.
5.Front window which is made of thick transparent toughened glass maximize light and visibility inside the fume hood, providing a bright and open working environment.
Parameter
Model
FH1200(P)
FH1500(P)
FH1800(P)
External Size (W*D*H)
1247*800*2450mm
1547*800*2450mm
1847*800*2450 mm
Internal Size (W*D*H)
987*560*700mm
1287*560*700mm
1587*560*700 mm
Work Surface Height
820mm
Max Opening
740mm
Air Velocity
0.3~0.8m/s
Noise
≤68dB
Illuminating Lamp
LED lamp
30W*1
30W*2
36W*2
Blower
Built-in
PP centrifugal blower（2 blowers for FH1800(P) only); Speed adjustable
Front Window
Resitant
to acid and alkali,
Manual, 5mm toughened glass, height adjustable.
Power Supply
AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Consumption
360W
360W
360W
Material
Main Body
Made of Porcelain white PP, thickness 8mm, resistant to strong acid, alkali and anti-corrosion
Work Table
Chemical resistant phenolic resin
Standard Accessory
Illuminating Lamp , Water tap, Gas tap, Water Sink, Base cabinet
Waterproof socket*2,PP centrifugal blower,pipe strap*2(4 Pcs for
FH1800(P) only)4 meters PVC duct (2 Pcs of 4 meters PVC dust for FH1800(P) only), Diameter:250mm
Optional Accessory
PP work table, epoxy resin board or ceramic board,
Active carbon filter,
Outer PVC centrifugal blower(only need to select when
the duct more than 4m)
Gross Weight
198kg
225kg
259kg
Package Size(W*D*H)
Main Body
1388*938*1612mm
1688*938*1612mm
1988*938*1612mm

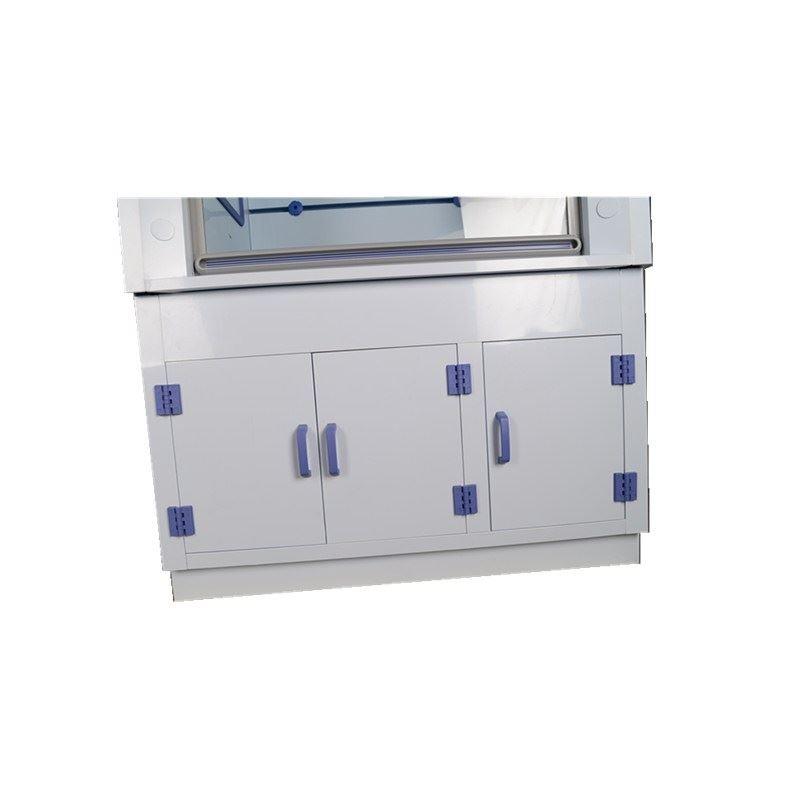

Base Cabinet
1388*888*1000mm
1688*888*1000mm
1988*888*1000mm
