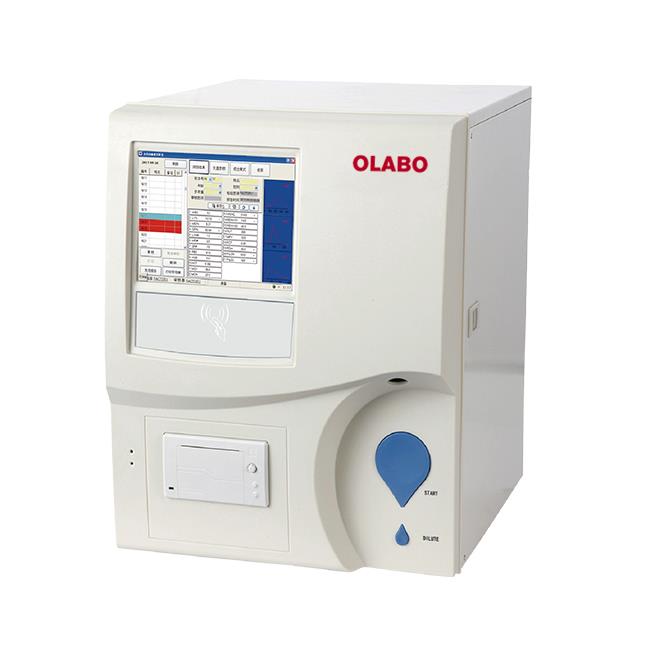

TEK-5000P Fully Auto Hematology Analyzer

Get Price

Product details

TEK-5000P Fully Auto Hematology Analyzer

Product Description

Features:

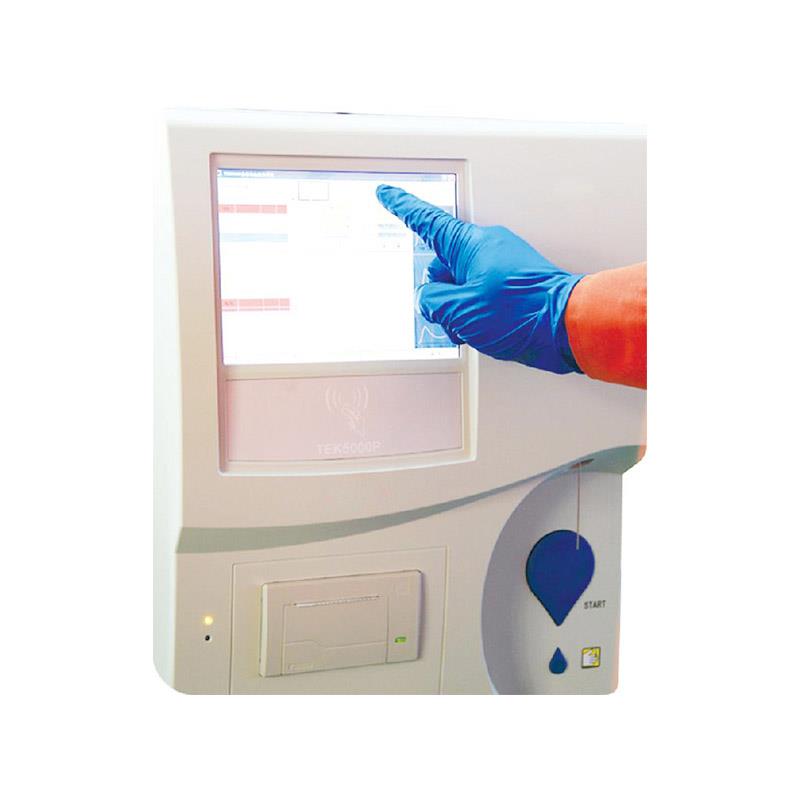

①. Touch Screen display
②. 3-part differentiation of WBC
③. 21 parameters + 3 histograms
④. Throughput: 60 samples per hour

Specification

Model	TEK-5000P
Throughput	60 tests/hour
Measuring Principle	Coulter principle Colorimetry hemoglobin determination
Parameters	WBC, LY#, MID#, GR#, LY%, MID%, GR%, RBC, HGB, HCT,MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PDW, PCT, P-LCR, P-LCC
Histograms	3 Histograms (including WBC, RBC, PLT)
Sampler Volume	Predilute 20μl Whole blood 10μl
Display	8” color touch screen display
Intelligent reagent management function	Reagent information and residual display
Carryover	WBC≤1.5% RBC, HGB<1.0% , PLT≤2%
Printer	External printer
Input and output	1 RS232 , keyboard , Mouse, 4USB, LAN
Performance	Parameter	Linearity range	Precision (CV%)
	WBC(109/L)	0.0-100.0	2.0 (4.0-10.0)
	RBC(1012/L)	0.00-9.99	1.5 (3.50-5.50)
	HGB(g/L)	0-300	1.0 (110-160)
	PLT(109/L)	0-1000	5.0 (100-300)
Option	Barcode scanner, LIS
Operating Environment	Temperature 10-35 oC Humidity≤90%
Power Supply	AC110/220V±10%, 60/50 Hz
Package Size(mm)	630600700
Gross Weight(kg)	25
Reagent Package Size(mm)	390280260
Reagent Gross Weight(kg)	13
