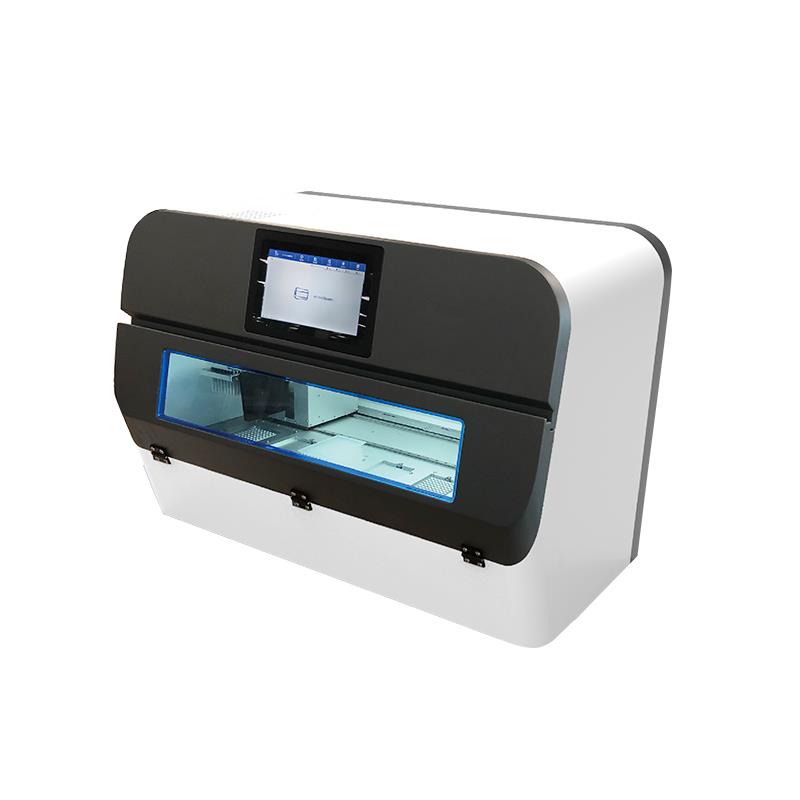

OLABO BK-HS96 Nucleic Acid Extractor System
Product Introduction
OLB-HS96 is a high throughput, high sensitivity automatically extracted nucleic acid purification equipment, matching nucleic acid extraction kits is used to automatically complete the extraction of sample nucleic acid, flexible, stable result, low cost, equipped with efficient filtration device and safety gate design, it can effectively avoid cross infection and ensure the quality of nucleic acid extraction., guarantee the quality of nucleic acid.
Features
*Display: 10.1 inch touch screen, easy to operate
*Accurate temperature control and rapid temperature rise, can be adopted to actively reduce to room temperature and store samples in a short time at low temperature.

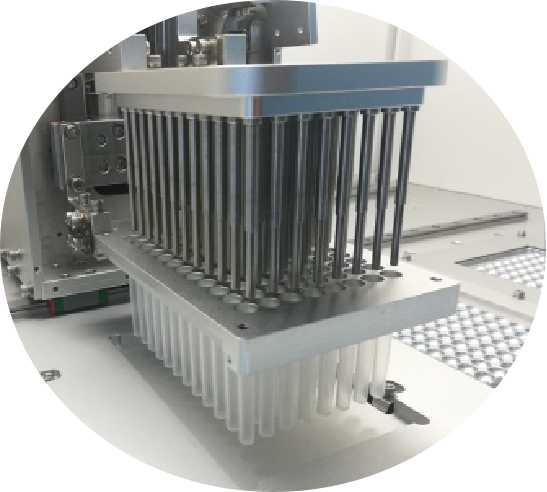

*The module is integrated with shocking and heating, which can be mixed with shock while heating, saving extraction time.
*Equipped with ultraviolet disinfection lamp, HDPE high efficiency filter and safety door protection function, it can effectively prevent aerosol pollution.
Product parameters
Model
BK-HS96
Nucleic Acid
Extraction Method
Paramagnetic particle
method
Sample
Capacity

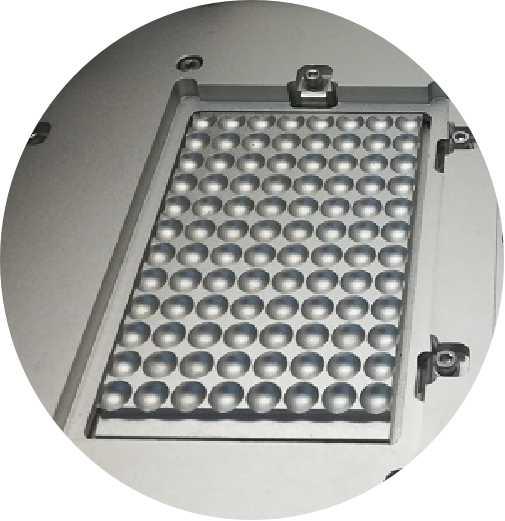

96-well
Sample Volume
20-1000ul
Extraction
Time
15min-60min
Magnetic Bead
Recovery
≥98%
Magnetic Flux
of Bar
3000-6000Gs,can
change others
Operating
Temperature
RT-105℃
Shock
Function
Yes
Temperature
Accuracy
0.1℃
Sample
Protection Function
Power on self-check,
power off protection, high-temperature alarm, over-temperature protection
Disinfection
Method
UV Light
Safety Door
Design
The instrument is
suspended when the safety door is opened
Operating
System
Windows system
Scanning
Optional
Storage
>1000
Interface
USB interface
Power Supply
AC100-240V 50Hz/60Hz
Package
Size(W*D*H)mm
1138*733*1028
Gross
Weight(kg)
70
