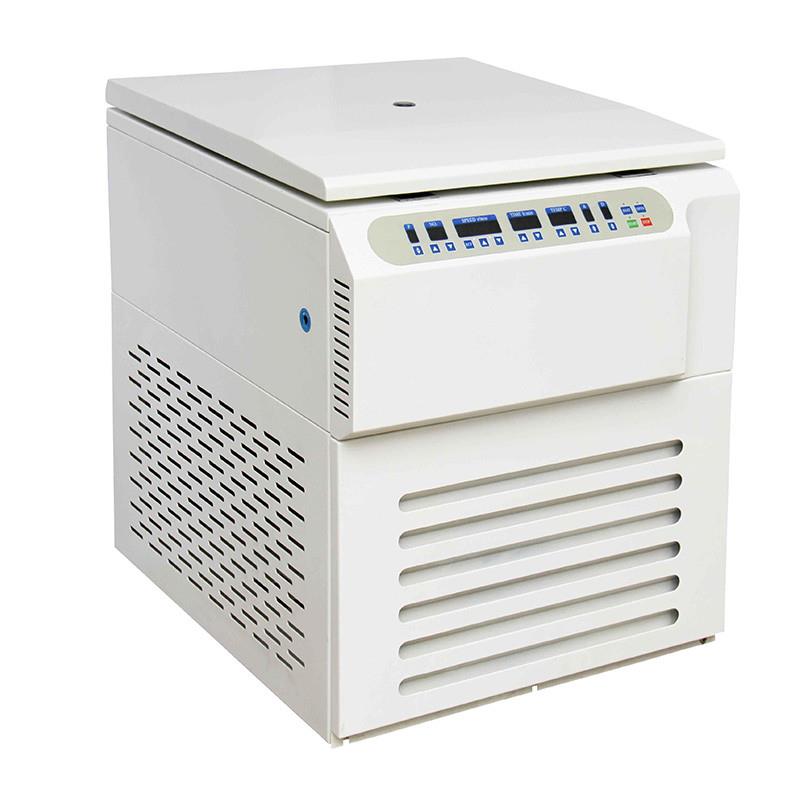

OLABO High Speed Low Temperature Centrifuge
Product Introduction
The strong centrifugal force produced by the high-speed rotation of the centrifuge rotor can separate the solid particles in the suspension from the liquid, or separate two kinds of liquid with different density and mutual immiscible in the emulsion, and can also be used to remove the liquid in the wet solid, which is widely used in chemical industry, petroleum, food, pharmaceutical, mineral processing, coal, water treatment, etc.
Features
1.Brushless frequency conversion motor, maintenance free, large torque, fast speed up and down.
2.All of them are precisely controlled by microcomputer processor, digital display, key programming, setting parameters can be modified during operation, conversion and display of operation parameters and RCF values.
3.Using fluorine-free compressor unit, no environmental pollution, fast refrigeration.
4.Automatic electric induction door lock, emergency unlocking function; over speed, over temperature, imbalance
5.Automatic protection; high quality steel structure, built-in precision steel explosion-proof protection inner sleeve, stainless steel centrifugal cavity, three-layer protection, safe and reliable.
6.The spring cone sleeve is used to connect the rotating head and the main shaft. It is quick and simple to load and unload the rotating head, which is directional, safe and reliable, and easy to use

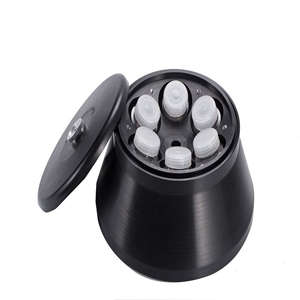

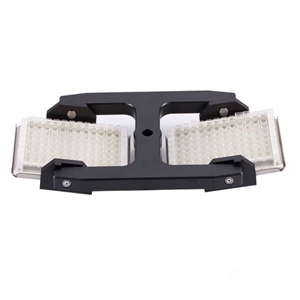

7.It is equipped with a variety of rotary heads for selection, one machine can be used for many purposes, and various adapters can be designed according to the test requirements.
8.Three stage shock absorption and ideal centrifugal effect.
Product Parameter
Model
TGL-16M
TGL-18M
TGL-20M
TGL-21M
DGL-10R
TGL-21R
TGL-16E
Max. Speed
16000rpm
21000rpm
21000rpm
21000rpm
10000rpm
21000rpm
16000rpm
Max. RCF
20600xg
30910xg
30910xg
46140xg
15730xg
30910xg
19040xg
Max. Capacity
6*100ml
4*800ml
6*100ml
6*500ml
6*1000ml
4*800ml
6*10ml
Speed
Precision
±20rpm
±20rpm
±20rpm
±20rpm
±20rpm
±20rpm
±20rpm
Timing Range
1s~99h59min59s
1s~99h59min59s
1s~99h59min59s
1s~99h59min59s
1s~99h59min59s
1s~99h59min59s
1s~99h59min59s
Temp. Range
-20℃~40℃
-20℃~40℃
-20℃~40℃
-20℃~40℃
-20℃~40℃
-20℃~40℃
-20℃~40℃
Temp.
Accuracy
±1℃
±1℃
±1℃
±1℃
±1℃
±1℃
±1℃
Refrigerant
CFC-free refrigerant
CFC-free refrigerant
CFC-free refrigerant
CFC-free refrigerant
CFC-free refrigerant
CFC-free refrigerant
CFC-free refrigerant
Noise
≤58dB
≤58dB
≤58dB
≤65dB
≤65dB
≤58dB
≤55dB
Power Supply
AC110/220V, 50/60Hz
AC110/220V, 50/60Hz
AC110/220V, 50/60Hz
AC110/220V, 50/60Hz
AC110/220V, 50/60Hz
AC110/220V, 50/60Hz
AC110/220V, 50/60Hz
External
Size(W*D*H)mm
610*570*370
700*715*420
610*570*380
865*728*1240
940*890*1000
720*540*830
480*480*275
Net
Weight(kg)
82
125
82
235
600
170
43
