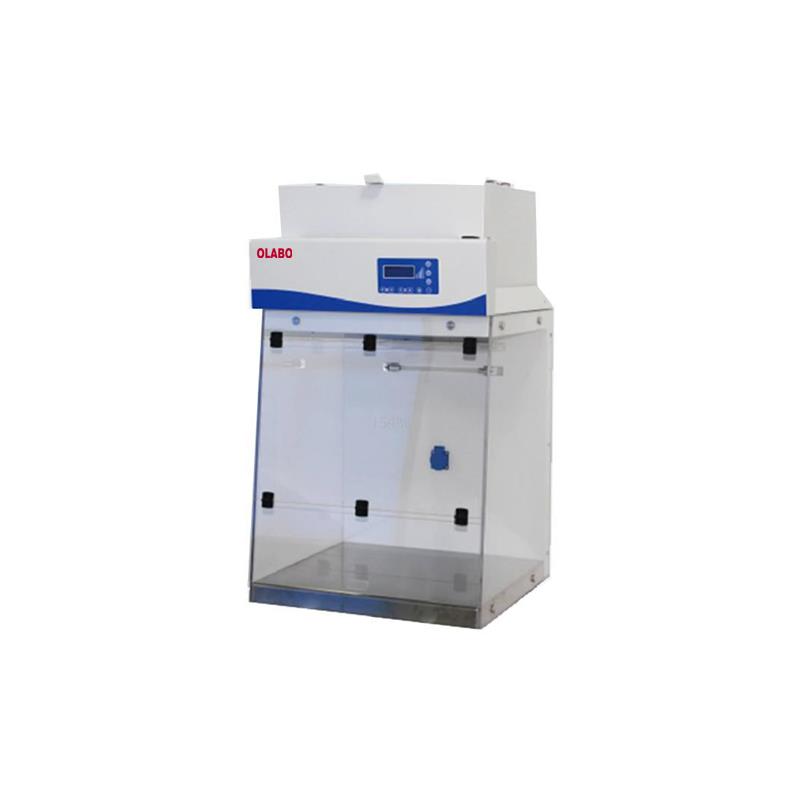

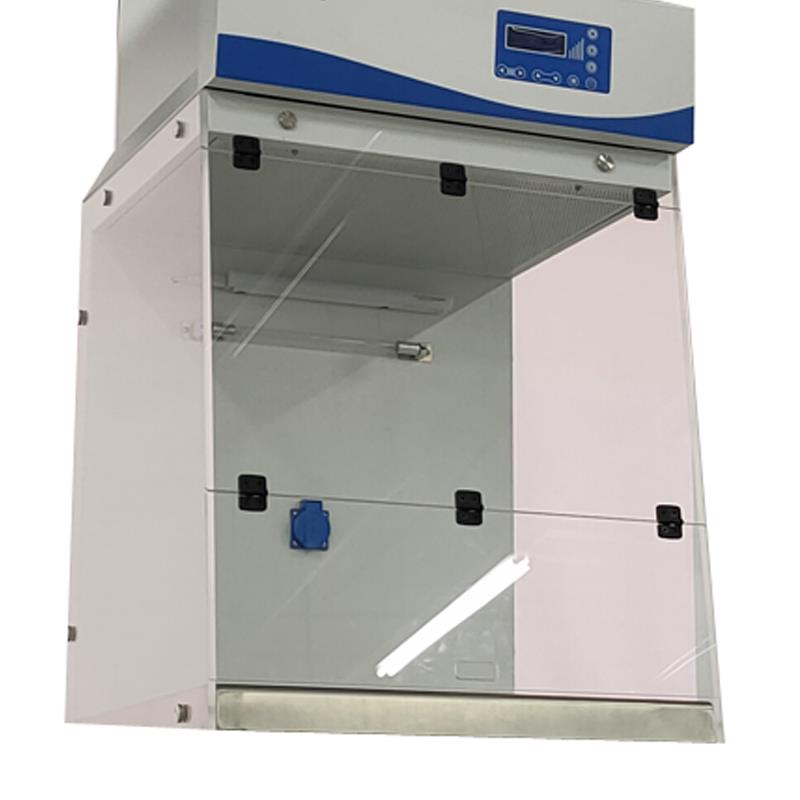

2020 Hot Sale Ductless Compounding Hood Laminar Flow Cabinet
Laminar Flow Cabinet is a work bench or similar enclosure, which creates a particle-free working environment by taking air through a filtration system and exhausting it across a work surface in a laminar or unidirectional air stream. The laminar flow cabinet is enclosed on the sides and kept under constant positive pressure in order to prevent the infiltration of contaminated room air.
Technical Parameters
Model
OBS-V500
OBS-V600
OBS-V700
External Size (W*D*H)
550*460*700mm
600*581*1115mm
700*620*1150mm
Internal Size (W*D*H)
480*340*370mm
580*520*613mm
640*550*700mm

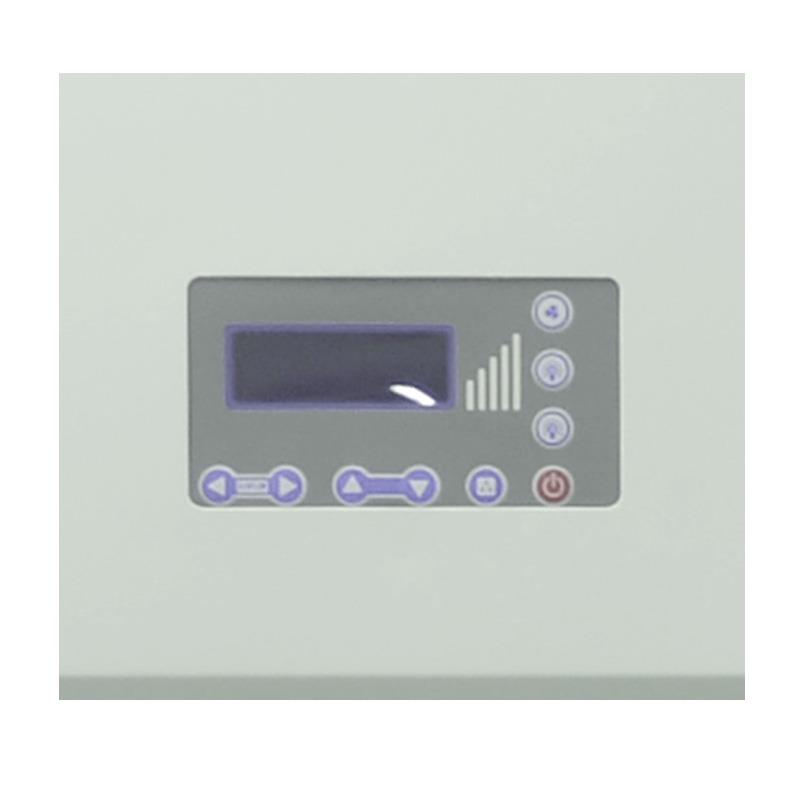

Display
LED Display
LCD Display
LED Display
Airflow Velocity
0.3~0.5m/s
≥0.5m/s
0.3~0.5m/s
0.3~0.8m/s
0.3~0.5m/s
0.3~0.8m/s
Material
Main Body
Cold-rolled steel with anti-bacteria power coating
Work Table
304 Stainless steel
Chemical resistant phenolic resin
Pre-Filter
Polyester fiber, washable(for model BBS-V500,BBS-V600 and BBS-V700)
Filter
HEPA Filter
Active Carbon Filter,
HEPA Filter
Active Carbon Filter
HEPA Filter
Active Carbon Filter
HEPA Filter
Noise
≤65dB
≤60dB
≤52dB
≤68dB
≤65dB
≤68dB
Front Window
Manual, 5mm toughened glass, anti UV
Manual, acrylic material
Manual, acrylic material
Max Opening
310mm
590mm
660mm
LED Lamp
4W*1
4W*1
4W*2
UV Lamp
8W*1
8W*1
15W*1
Emission of 253.7 nanometers
Consumption
100W
150W
300W
Power Supply
AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Standard Accessory
HEPA Filter,
Active Carbon Filter,
HEPA Filter,
Active Carbon Filter,
HEPA Filter,
Active Carbon Filter,
LED Lamp,
HEPA Filter,
LED Lamp,
LED Lamp,
LED lamp*2,
LED lamp*2,
UV Lamp*2.
LED Lamp,
UV Lamp*2,
UV Lamp*2.
Pipe Strap.
4 meters PVC exhaust duct,
UV Lamp*2.
Waterproof Socket.
Pipe Strap.
Optional Accessory
Electric height adjustable base stand
UV Lamp*2
Gross Weight
57kg
90kg
45kg
60kg(with base stand)
Package Size (W*D*H)
700*610*830mm
760*740*1280mm
840*760*1370mm
840*960*1370mm(with base stand)
