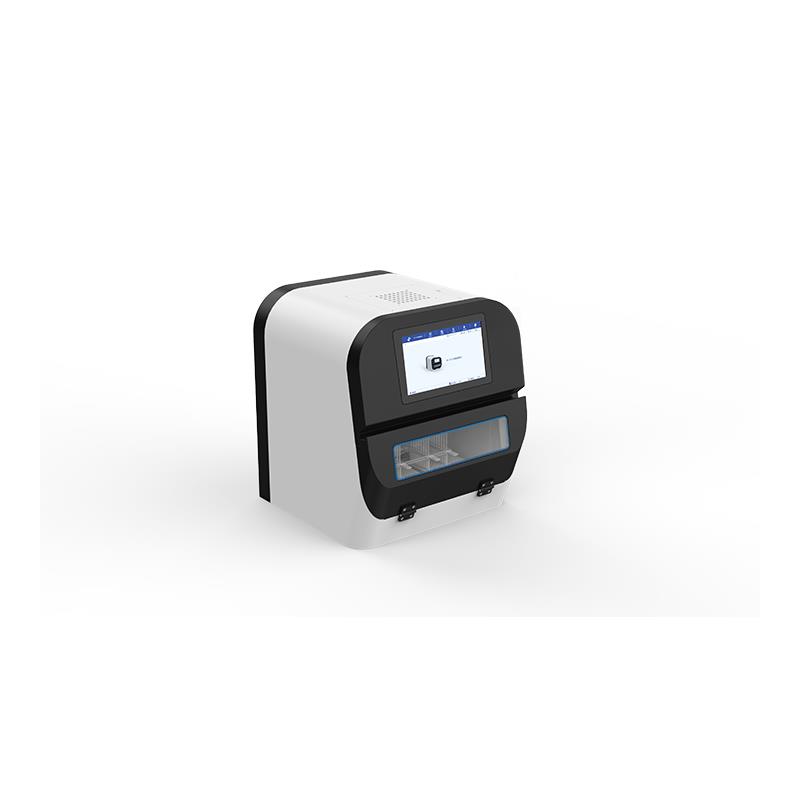

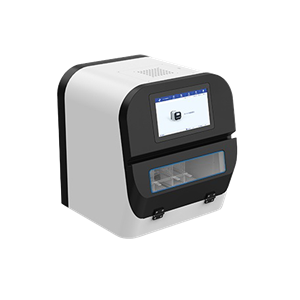

OLABO BK-HS32 Nucleic Acid Extractor System
Product Introduction
Nucleic acid extractor is an automatic instrument with magnetic beads nucleic acid extraction kit. It can operate 1-32 samples at the same time, and the whole operation process is controlled within 50 minutes. It is very suitable for nucleic acid extraction of a large number of samples.
Feature
1、Open system, fully automatic, stable results and good repeatability.
2、7-inch touch screen, easy to use, fast response.
3、Automatic control system, connect to computers wirelessly.
4、User-defined cracking and elution temperature.
5、Free programming to meet the needs of different reagent.
6、Extract rapidly 15-60 minutes , 32 samples can be extracted at the same time.
7、According to different reagents to optimize the purification scheme to achieve .
8、higher extraction efficiency and purity.
9、Built-in UV disinfection and air duct, avoid cross contamination.
Technical Parameter
|
Multi-mode Operation |
List mode, shortcut, view mode |
|
Processing Volume |
20μL-1000μL |
|
Sample Throughput |
1-32 |
|
Magnetic Bead Recovery |
>98% |
|
Extracting the Difference Between Holes |
CV≤3% |
|
Heating Temperature |
8 independent heating modules, customize lysis and elution temperature (temperature range) according to your needs |
|
Oscillating Mixing |
Low,medium and high third gears are adjustable, and the fluctuation range can be adjusted with the reagent volume |
|
Reagent Type |
Magnetic bead open platform |
|
Extraction Time |
15-60 min/round (depending on the reagent used) |
|
Internal Program |
Be able to store >500 groups of programs |
|
Program Management |
Powerful program editing capabilities to meet different reagent needs. U disk program import and export can be achieved |
|
Safety Door Design |
After the safety door is opened,the program operation will be automatically suspended, and the program can continue t run after the safety door is closed |
|
Built-in Air Duct |
Built-in air duct to avoid cross infection |
|
Safety Protection |
Support power-off protection and continuous operation after power is restored |
|
Flashlight |
Yes |
|
Ultraviolet Irradiation |
Yes |
|
Package Size (W*D*H)mm |
650*540*560 |
|
Gross Weight(kg) |
50 |
