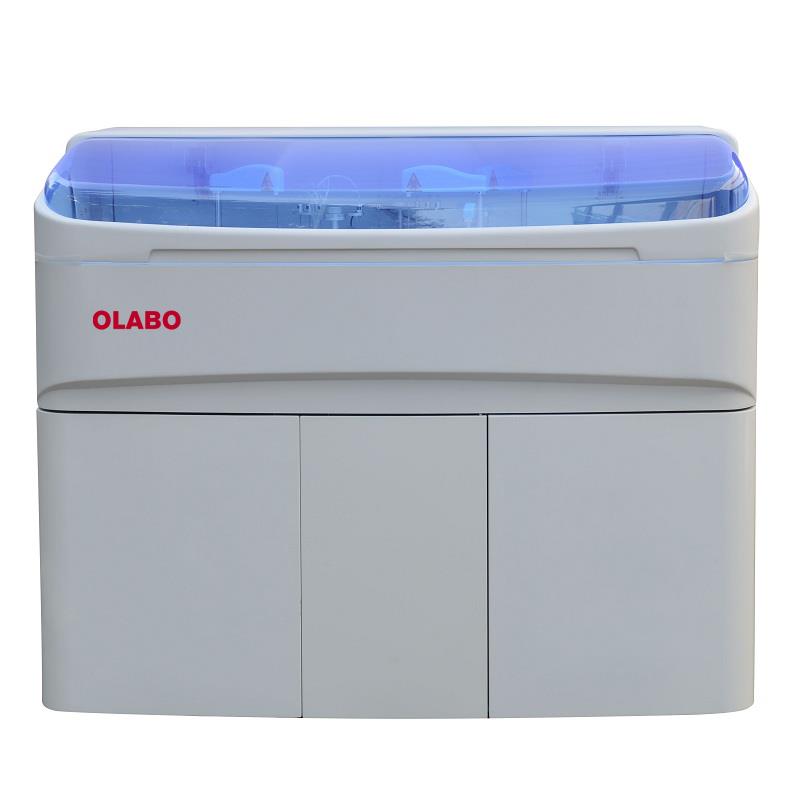

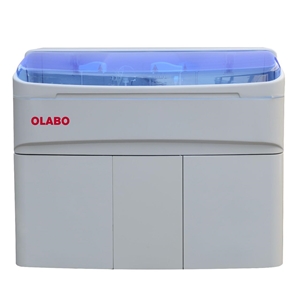

OLABO Hot Sale 800 Tests Per Hour 1200 Tests BK-1200 Auto Chemistry Analyzer
Product Description
Features:
1. 150 Sample positions.
2. 160 Reaction cuvettes.
3. 180 Refrigerated reagent positions.
4. Optical filter/fiber bragg grating selectable.
5. 800 Tests per hour 1200 Tests with ISE module.
6. Built-in sample barcode system optional.

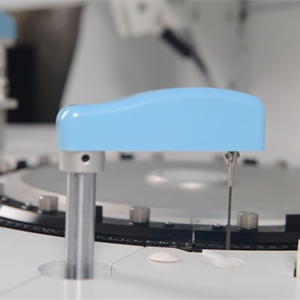

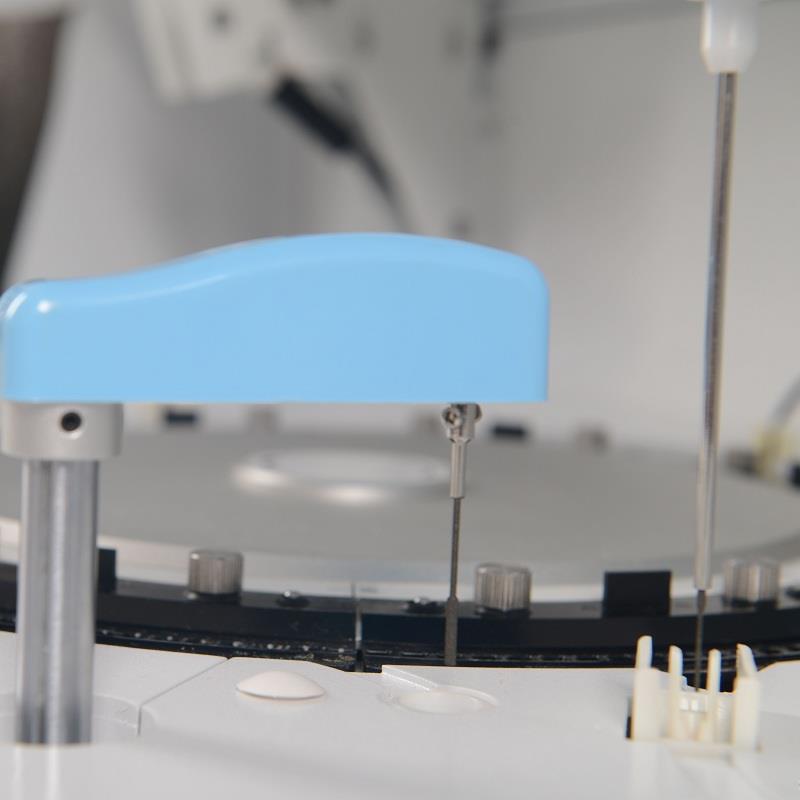

7.Probe with anti-collision function, liquid level detection function.
Specification
|
Model
|
BK-1200
|
|
|
Overall
|
Throughput
|
800Tests/hour,
1200Tests/hour with ISE(Optional)
|
| Performance |
Analysis Method
|
End-point, Fixed-time,
Rate(Kinetic), Turbidimetry
|
|
Sample & Reagent
System
|
Sample Positions
|
150sample positions
|
|
Reagent Position
|
180reagent positions
|
|
|
Sample Volume
|
2~70ul
|
|
|
Reagent Volume
|
20~350ul
|
|
|
Probe
|
Teflon
coating,withanti-collision function,Liquid level detectionfunction
|
|
|
Probe Washing
|
Automatic washing
interior and exterior
|
|
|
Reagent Cooling
|
Refrigerated tray with
independent switch
|
|
|
Reaction System
|
Temperature Control
|
Water bath37±0.1℃,
real-time monitoring
|
|
Cuvettes
|
160reusable cuvettes,
optical length 6mm
|
|
|
Mixer Probe
|
Independent stirring
|
|
|
Washing
|
Automatic cuvettes
washing
|
|
|
STAT function
|
YES
|
|
|
Optical System
|
Light Source
|
12V/20W halogen
lamp/fiber bragg grating optional
|
|
Spectrophotometry
|
Post-spectral
spectrophotometry
|
|
|
Wavelength
|
12 wavelength from
340~800nm
|
|
|
Absorbance
|
-0.3~3.0Abs
|
|
|
Calibration & QC
|
Calibration
|
Linear:K factor,
1-point ,2-point and multipoint linear
|
| Non-Linear:Spline,Polygon, Index, Ogarithm, Logit-4P, Logit-5P | ||
|
Quality Control
|
Real-time QC, Westgard
multi rule, Cumulative Sum Check,Twin Plot(2D)
|
|
|
Data Management
|
Software
|
Windows 7/8/10 , 32or
64bit
|
|
LIS System
|
Bi-direction,support
HL7 protocol
|
|
|
Interface
|
LAN port access
|
|
|
Printer
|
External,multiple
reporting mode available
|
|
|
Working Conditions
|
Power Supply
|
AC220V±10% 50/60Hz,
110V±10% 60Hz, 1500W
|
|
Temperature
|
10～30℃
|
|
|
Water Consumption
|
Deionized water:20L/H
|
|
|
Humidity
|
30-80%
|
|
|
Size & Weight
|
External Size (W*D*H)
|
1360*791*1157mm
|
|
Net Weight
|
286kg
|
|
|
Package Size (W*D*H)
|
1718*929*1434mm
|
|
|
Gross Weight
|
390kg
|
