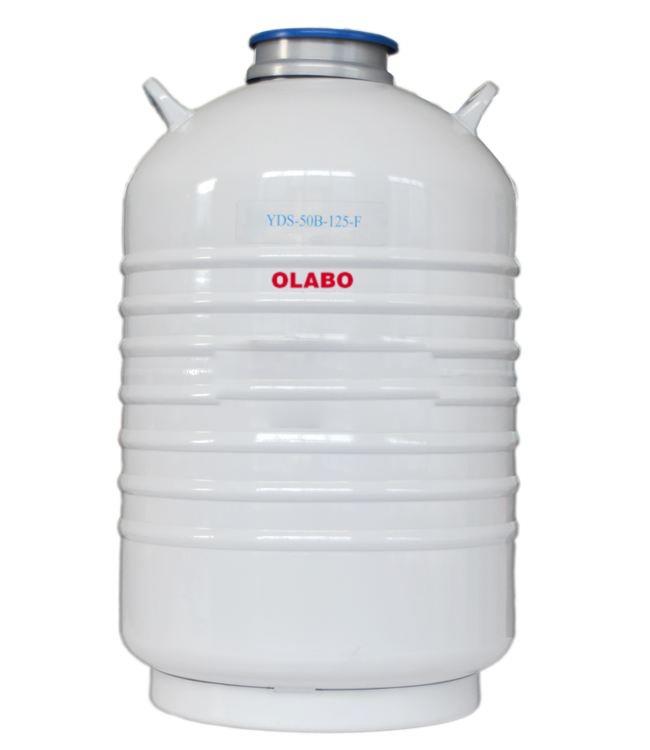

OLABO 50 liters liquid nitrogen tank YDS-50B-125-FS
Product description
Made of high-strength aluminum alloy, the product is light in quality;
High vacuum multilayer insulation design;
Optional lock cover to protect the safety of samples stored in the container.
Specification
Model
YDS-50-125-F
Geometric volume (L)
50
Caliber (mm)
125
Static liquid nitrogen evaporation capacity (L/D)
0.43
Storage period of static liquid nitrogen (d)
115
Square bucket
方提筒数量（ea）
Square bucket size (mm)
82×84
Box size (mm)
76×76
Number of layers of square bucket (ea)
6
Number of Ampoules (ea)
900/1050
25ml (single)
Number of buckets（ea）
Layers of Freezer Shelf (ea)
3
Number of blood bags (ea)
54
25ml (multiple)
Number of buckets（ea）
Layers of Freezer Shelf (ea)
3
Parallel number of frozen storage boxes (ea)
4
Number of blood bags (ea)
84
50ml (single)
提筒数量（ea）
Layers of Freezer Shelf (ea)
——
Number of blood bags (ea)
——
50ml (multiple)
Number of buckets（ea）
Layers of Freezer Shelf (ea)
——
Parallel number of frozen storage boxes (ea)
——
Number of blood bags (ea)
——
Height (mm)
754
Outer diameter (mm)
462
Empty weight (kg)
15.2
Optional lock cover
√
Optional protective cover
√
Optional liquid level monitor
√
Optional transport vehicle
√
