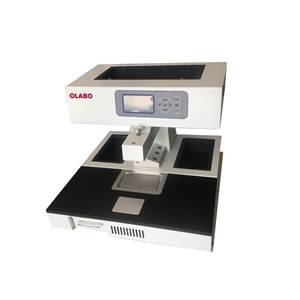

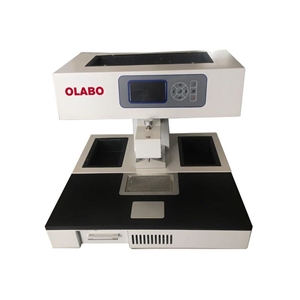

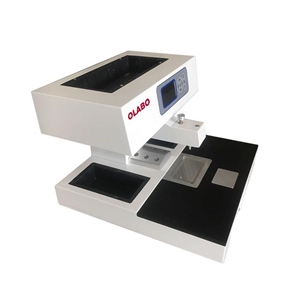

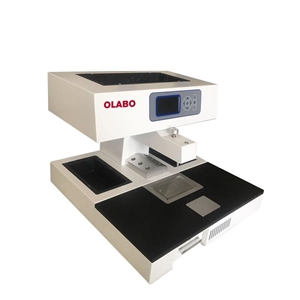

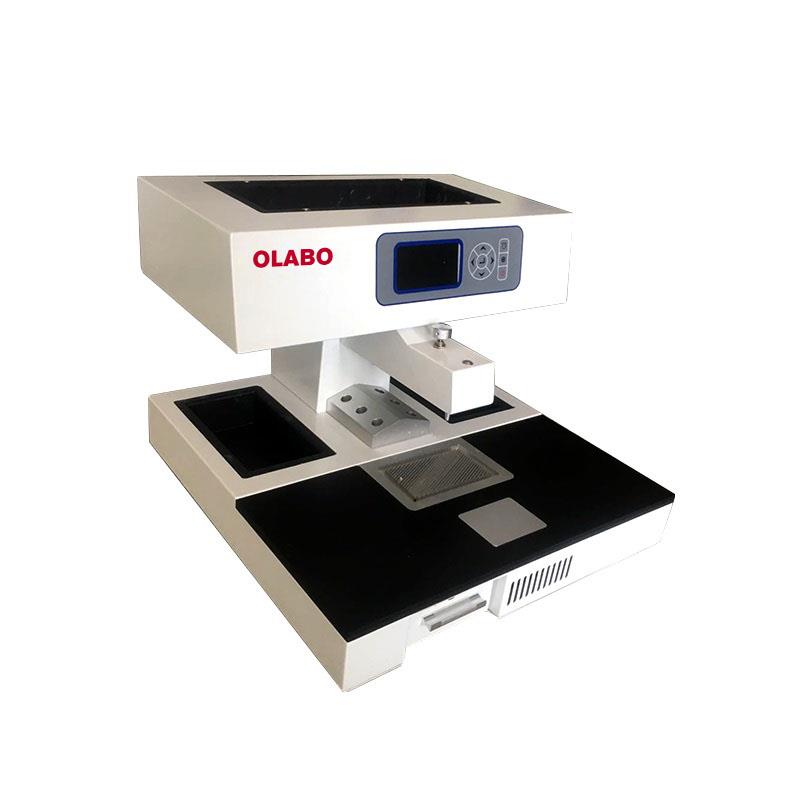

OLABO OLB-TE I Tissue Embedding Center &Cooling Plate
Introduction
Paraffin embedding machine is a kind of equipment which embeds the tissue wax blocks of human body or animal and plant specimens after dehydration and wax immersion for histological diagnosis or research after slicing. It is suitable for medical colleges, hospital pathology department, medical research institutions, animal and plant research units and food testing departments.
Features
* Microprocessor Control for temperature,made in the USA
* The Embedding Module and Cryo Module can be assembled freely
* Flexible heating mechanism, Dual-protection; Safe, Reliable and Energy-Saving
* Fully programmable computer controls allow automatic system start and stop anytime within a week
* Automatic Memory and Restoration: After start, all preset temperature data are automatically stored
* Paraffin Chamber, Paraffin Dispenser, Left and Right Thermal Storage Compartments, and Heating Plate (working area) are individually controlled
Optional
OLB-CPI Cooling Plate:
Working Temp.: RT-40℃, Temp. can not be adjustable. The lowest can be -30℃.
Working Size: 320*300mm
Parameters
Model
OLB-TEI
Paraffin Chamber Capacity
3L
Temp.Range of
Forceps Wells
55~70℃
Paraffin-melting Chamber
Thermal Storage Compartments
Heated Working Areas
Paraffin Dispenser
Temp. Precision
±1%
Material of Work Table
Granite, easy to
clean
Paraffin Flow Control
Finger touch plate
and optional foot pedal
Power Supply
AC110/220V±10%,
50/60Hz
Consumption
650W
External Size(W*D*H)
525*550*385mm
Package Size(W*D*H)
630*670*520mm
Gross Weight
41kg
Optional Accessory
BK-CPI Cooling Plate
Package Size of OLB-CPI (W*D*H)
700*450*530mm
Gross Weight of OLB-CPI
37kg
