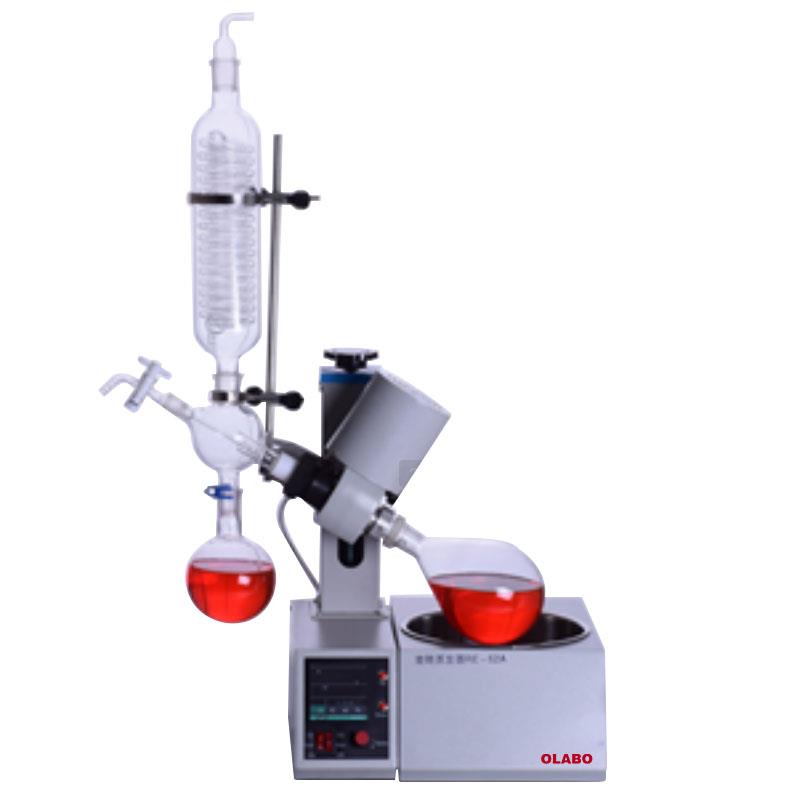

OLABO RE-52A Rotary Evaporator
Product Introduction
It is mainly used for continuous distillation of a large number of volatile solvents under reduced pressure. Especially for the concentration of the extract and chromatographic separation of the receiving liquid distillation, separation and purification of reaction products. It is especially suitable for the concentration and purification of biological products which are easy to decompose and denatured at high temperature.
Features
* Intelligent temperature control and digital temperature display.
* Stepless speed controller.
Parameter
Model
RE-52A
Rotary Bottle
1 L
24#(standard size）
Collecting
Bottle
0.5 L
24#(standard size)
Condenser
Vertical φ85*460mm,
29#(standard size)
Charging
Valve
19#(standard size）
Rotating
Speed
0~120 rpm
Vacuum
-0.098 Mpa
Temp. Range
RT~99 ℃
Temp.
Accuracy
±1℃
Stroke Height
120 mm
Rotating
Power
30W
Heating Power
1KW
Shelf
Material
Powder coating
anticorrosive
Power Supply
AC220V±10%, 50Hz
External
Size(W*D*H)
700*440*1005mm
Packing
Size(W*D*H)
590*460*460mm
Gross Weight
21Kg
Standard
Accessory
1000ml
rotary bottle*1, 500ml recycling bottle*1
Optional
Accessory
RT~400℃ Oil bath, Transparent bath
cover, Vacuum pump, Recirculating chiller
