high pressure steam autoclave
Features:
* Standard built-in printer.* Deionized water interface for supplying steam generator.
* Rapid water cooling system for efficient and safe sterilization of liquids.

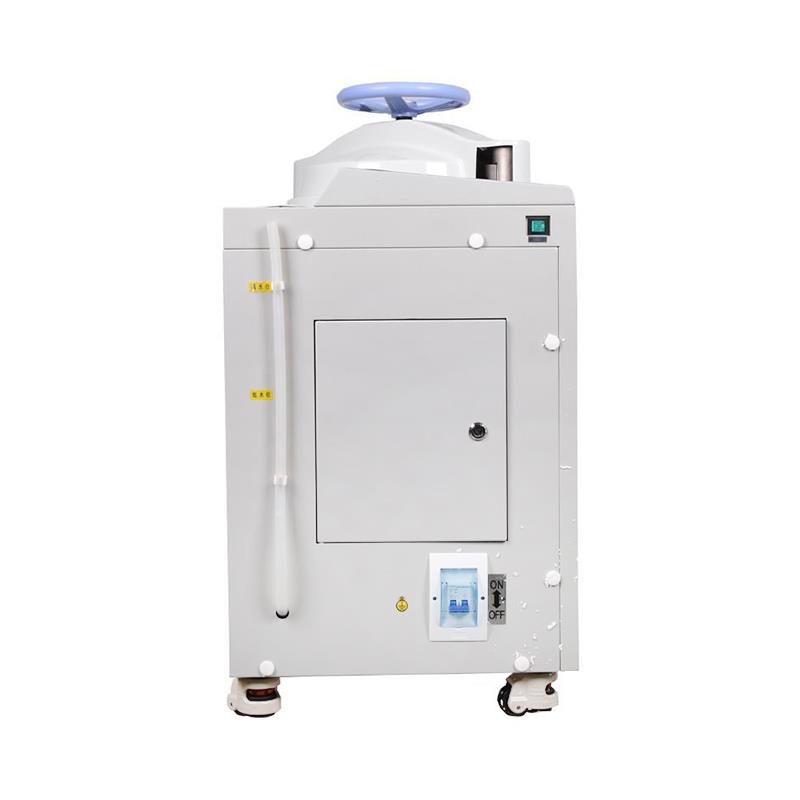

* With a quick maintenance window, the electrical parts can be repaired without removing the cover.
* Microcomputer control. Fully automatic control water injection, temperature rise, sterilization, exhaust and dry.

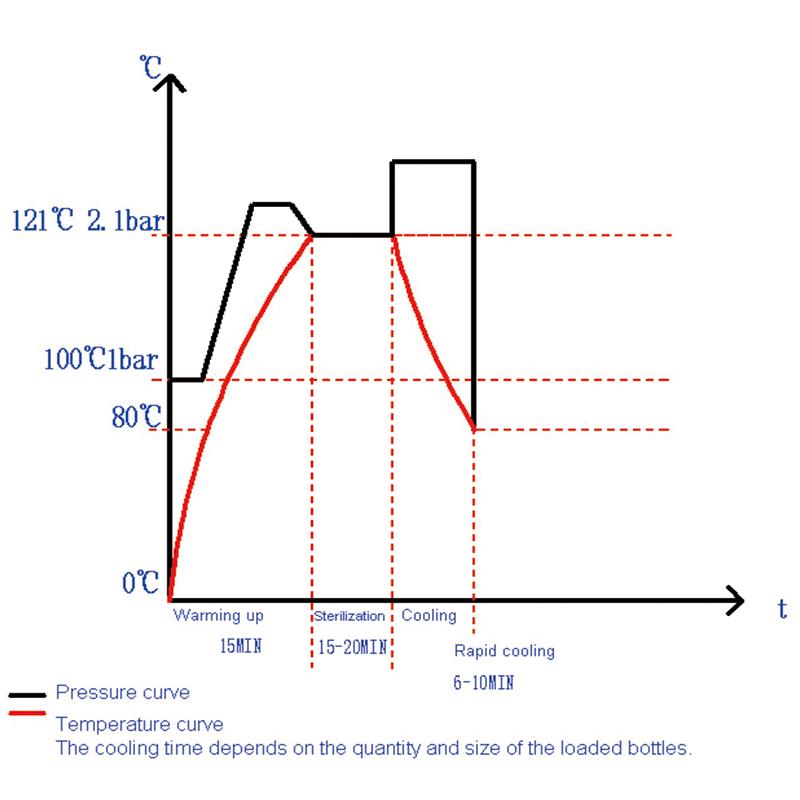

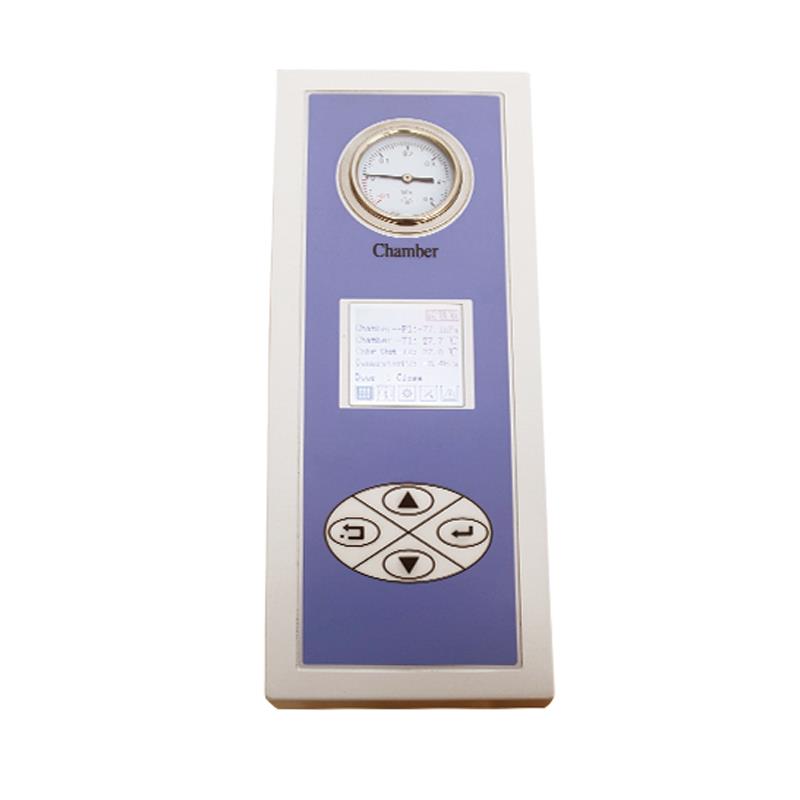

* LCD screen display shows pressure, temperature, time and error codes and operation curve etc.
* Mobile probe detects to ensure the internal temperature of liquid directly, to ensure the sterilization effect of liquid program.
Technical parameters:
Model
OLBQ-B50L
OLBQ-B75L
Capacity
50L
75L
Chamber Size(mm)
φ386*490
φ386*670
Chamber Material
SUS304
Max Designed Pressure
0.28MPa
Max Designed Temp
150℃
Working Pressure
0.22MPa
Working temp.
80℃-136℃
Temp. Accuracy
0.1℃
Noise
≤65dB
Power consumption
5.5KW
Power Supply
AC110/220V±10%,50/60Hz
External Size(W*D*H)mm
700*610*1100
Packing size(W*D*H)mm
800*715*1270
Net Weight(kg)
140
147
