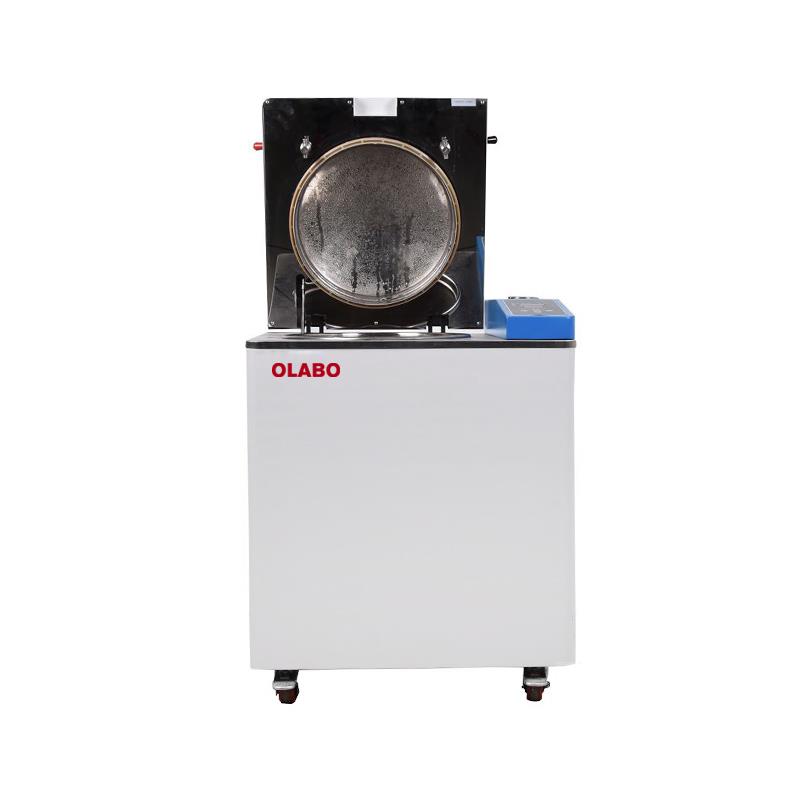

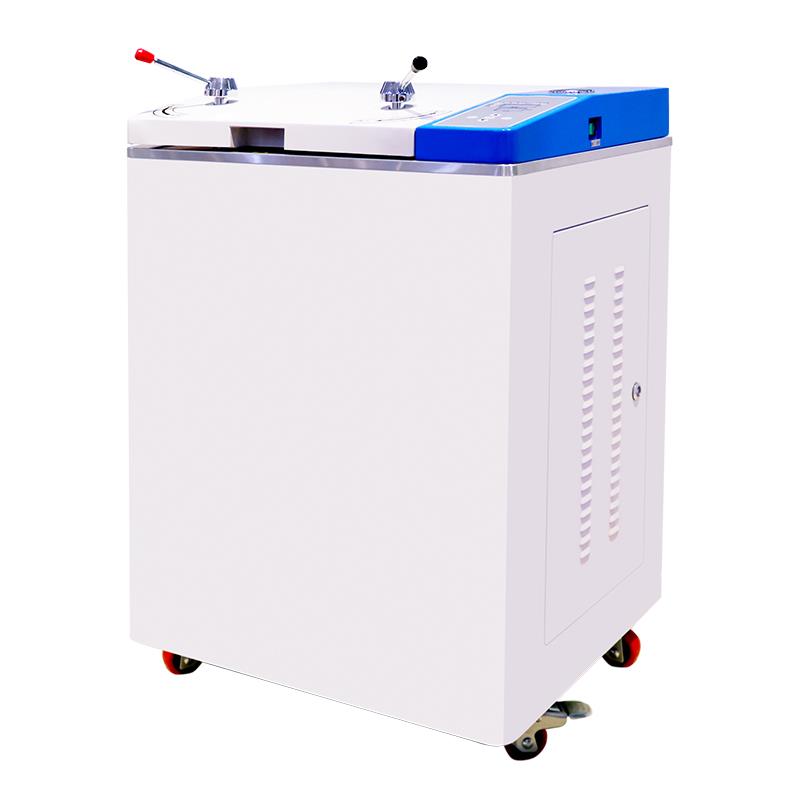

50L vertical autoclave
Features:
1. Complete protection system.
2. Flip-open door structure with spring booster, easy to open.
3. LED displays inner temperature, time and error codes.
4. Automatic exhausting steam function.
5. Reliable mechanical safety interlock feature.
6. External material: Cold rolled steel with anti-bacteria powder coating.
7. Fixed sterilization programs for dressings, unwrapped and wrapped equipment, rubber, and liquid.
8. Door cover is wrapped completely, to prevent scald effectively.
9. Radial self-expanding silicone rubber seals with high effect and long using life.
10. Optional printer for recording sterilization data.
Technical parameters:
Model
OLBQ-Z30I
OLBQ-Z50I
OLBQ-Z75I
OLBQ-Z100I
Capacity
30L
50L
75L
100L
Chamber size(mm)
φ385*412
φ385*515
φ385*715
φ385*915
ChamberMaterial
SUS304
MaxPressure
0.3MPa
RatedWorkingPressure
0.22MPa
MaxTemperature
150℃
WorkingTempRange
105~134℃
Temp.Display Accuracy
±0.1℃
TimingRange
0-999min
DynamicPulseExhaustTime
0~9times
WaterRequirement
Distilled water or demineralized water
Standard Accessories
Stainless steel basket*1pc
Stainless steel basket*2pcs
Consumption
4KW
PowerSupply
AC110/220V±10%, 50/60Hz
External Size(W*D*H)mm
645*610*710
645*610*850
645*610*1000
645*610*1200
Packing Size(W*D*H)mm
750*745*950
750*745*1100
750*745*1240
750*745*1450
GrossWeight(kg)
100
103
114
122
