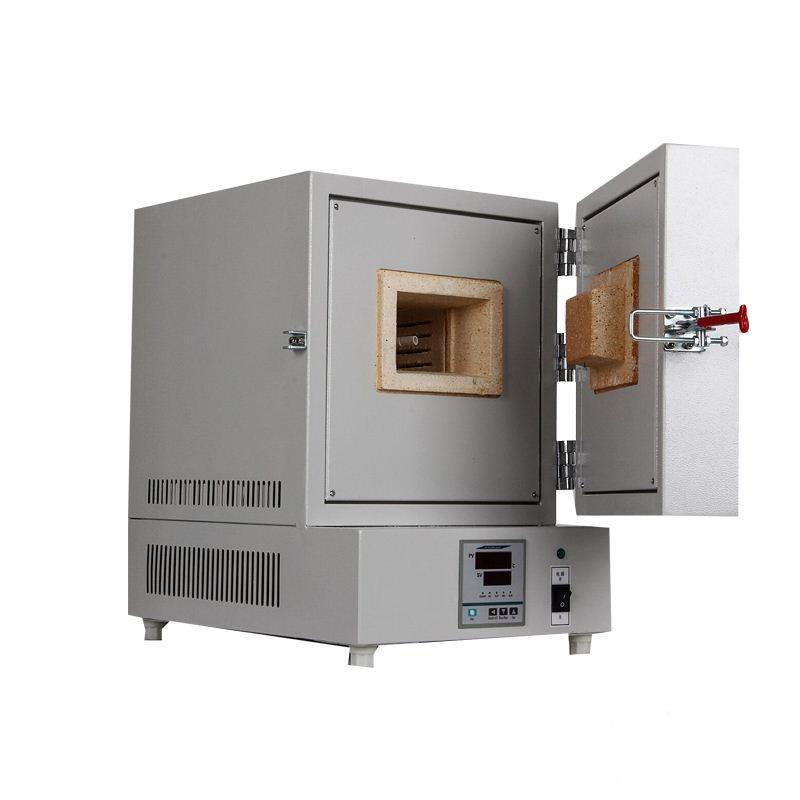

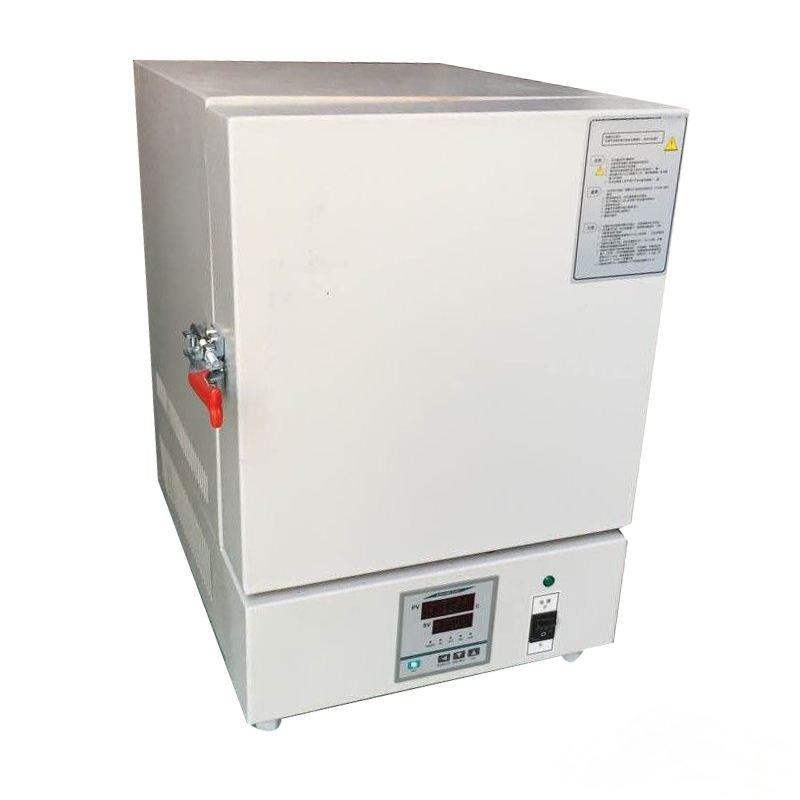

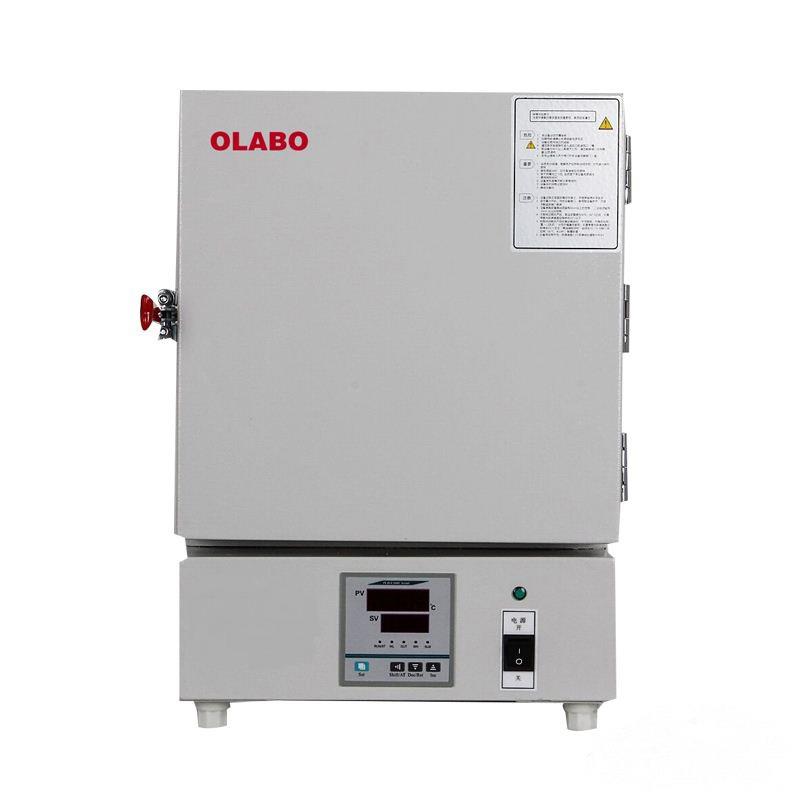

SX2-16-10T integrated ceramic fiber muffle furnace
Product description
Large-screen LCD display, integrated design of the whole machine, and new-style door furnace design make the door opening operation safe and convenient;
The box shell is made of high-quality cold-rolled steel plate, and the shell color paint is baked at a high temperature to ensure durability;
Using microcomputer PID controller, the temperature control is more accurate, safe and reliable;
New design, beautiful appearance, reasonable structure, balanced temperature field, environmental protection and energy saving, easy to use;
Equipped with a variety of safety protection measures such as overcurrent, overvoltage, overheating, leakage, short circuit, etc., to ensure safe use;
Specification
Model
SX2-16-10T
Voltage
AC380V 50Hz
Heating element
Nickel chromium wire (including molybdenum)
Higher temperature
1000℃
Operating temperature
300~950℃
Power
16KW
Constant temperature fluctuation
±2℃
Temperature resolution
1℃
Studio size
400*500*400
W×D×H(mm)
Volume
80L
