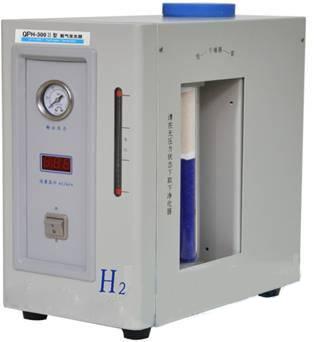

OLABO Hydrogen Generator
Product Introduction
The hydrogen generator is composed of electrolysis cell, pure water tank, hydrogen/water separator, collector, dryer, sensor, pressure regulating valve, switching power supply and other components.
Features
1. It is easy to operate, safe and reliable, adding alkali at one time, daily use only needs to add distilled water, and turn on the power switch to produce hydrogen.
2. All parts of the gas circuit are made of unrepaired steel pipes (electrolytic polishing, ultrasonic cleaning), with over-voltage protection devices, and two-stage purification.
3. The new type of anti-liquid return device ensures that the instrument will never return liquid.
4. Barrel-type electrolytic cell, the electrolytic material is made of imported special precious metals, which can effectively improve the electrolysis efficiency and keep the temperature of the cell body constant, which greatly improves the service life of the electrolytic cell.
5. The output flow is stable, automatic tracking, purity does not decay, and can be used continuously.
Parameter
Model
QPH-300II
QP-3H
QP-5H
QPH-500II
QPH-1L
Power Supply
220V±10%；50Hz±%
Max Consumption
150W
210W
315W
200W
400W
Hydrogen
Purity
＞99.999%
Working
Environment
Environment
Temperature：10-40℃；Relative Humidity：≤85%
No large amount of dust and corrosive gas
Output Flow
0-300ml/min
0-300ml/min
0-500ml/min
0-500ml/min
0-1L/min
Output
Pressure
0.04Mpa(Factory setting 0.3Mpa)
External
Size(mm)
320*180*370
350*190*380
350*190*380
320*180*370
470*300*365
Net Weight(kg)
10
8
8
10
20
