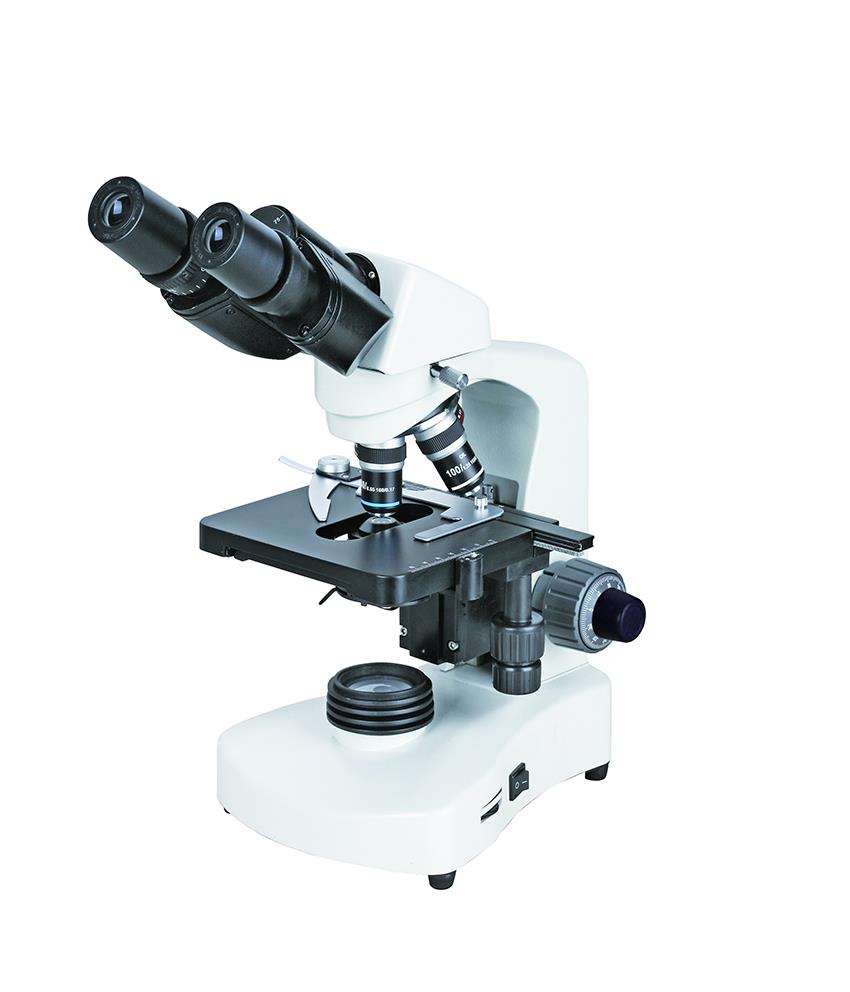

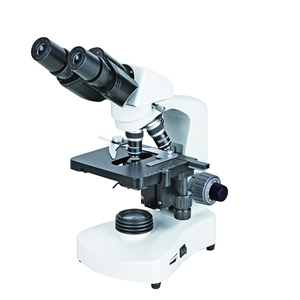

Newly Design Laboratory Biological Microscope
Product Description
N-117M can be equipped with trinocular biological microscope; eyepiece WF10X,
objective lens 4X, 10X, 40X, 100X
①The latest processing and manufacturing equipment and advanced assembly and school technology.
②The functions and configuration of any binocular microscope.
③The latest style is more comfortable than the combination of man and machine.
Specification
Observation head
Hinged binocular head, 30° tilt, interpupillary distance 48-75mm
●
Hinged trinocular head, 30° tilt, interpupillary distance 55-75mm
○
Eyepiece
WF10×/18
●
P16×/11
○
Objective lens
Achromatic objective lens 4×, 10×, 40×, 100×
●
Converter
Plan achromatic objective lens 4×, 10×, 40×, 100×
○
Inward four-hole converter
●
Stage
Double-layer movable platform area is 132×142mm; moving range is 75×40mm
●
Focusing system
Coaxial coarse and fine adjustment focusing mechanism, focusing range 24mm
●
Condenser
NA1.20 Abbe condenser with variable diaphragm and color filter
●
NA1.25 Abbe condenser with variable diaphragm and color filter
○
Lighting system
S-LED lighting, continuously adjustable brightness
●
6V/20W halogen lamp lighting system with adjustable brightness
○
Phase contrast accessories
○
Darkfield accessories
○
Polarizing device
○
●Standard configuration, ○Optional configuration
