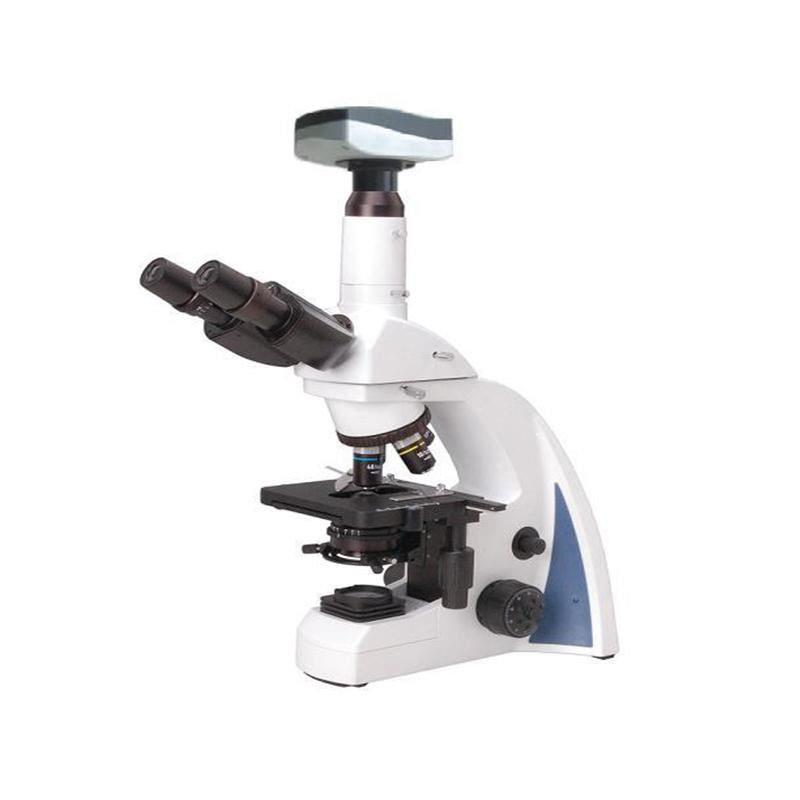

Factory direct supplier Portable Electronic microscope
Product Description
Specification
Serial number
Product parameter
1
Magnification: 40-1000X
2
Eyepiece: wide field eyepiece WF10X/18,
3
Lens tube: trinocular observation head, 30° tilt, diopter adjustable, interpupillary distance 48-75mm
4
Converter: inward tilt four-hole converter
5
Infinity objective: Infinity plan achromatic objective 4X, 10X, 40X (spring), 100X (spring, oil)
6
Condenser: swing-out N.A1.25 Abbe condenser, adjustable rack and pinion, adjustable for lifting
7
Moving stage: XY mechanical moving large stage, 140X140 (mm), moving range 75X50 (mm), minimum reading value 0.1mm, right hand pull low coaxial handwheel, film holder can hold 2 biological slices
8
Focus adjustment: Coaxial coarse and fine adjustment, coarse adjustment stroke 37.7mm per circle, fine adjustment stroke 0.2mm per circle, fine adjustment minimum reading value 0.002mm
9
Light source: 220V voltage, S-LED lighting, adjustable brightness
