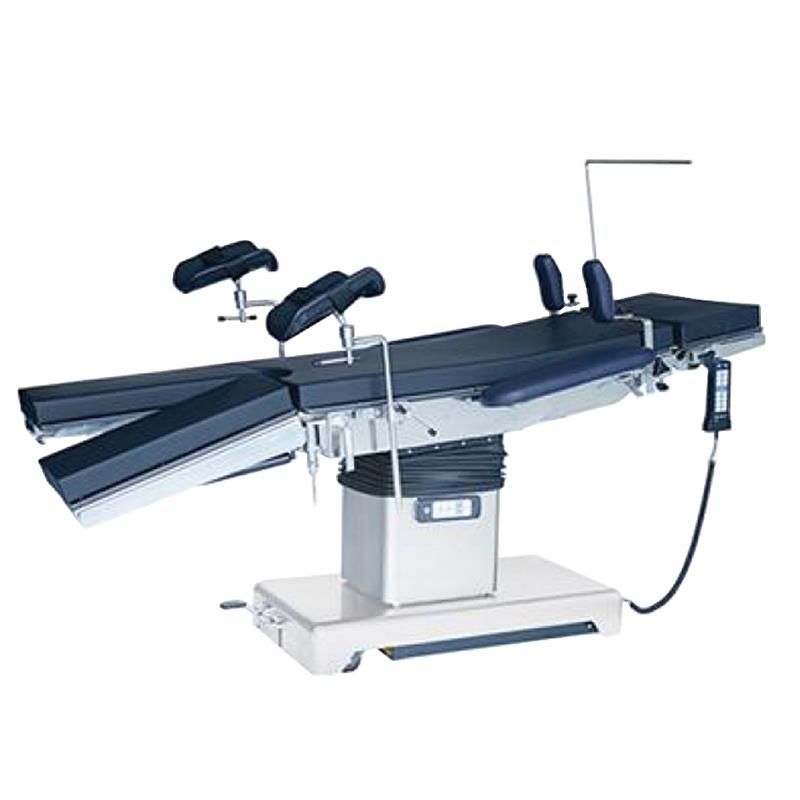

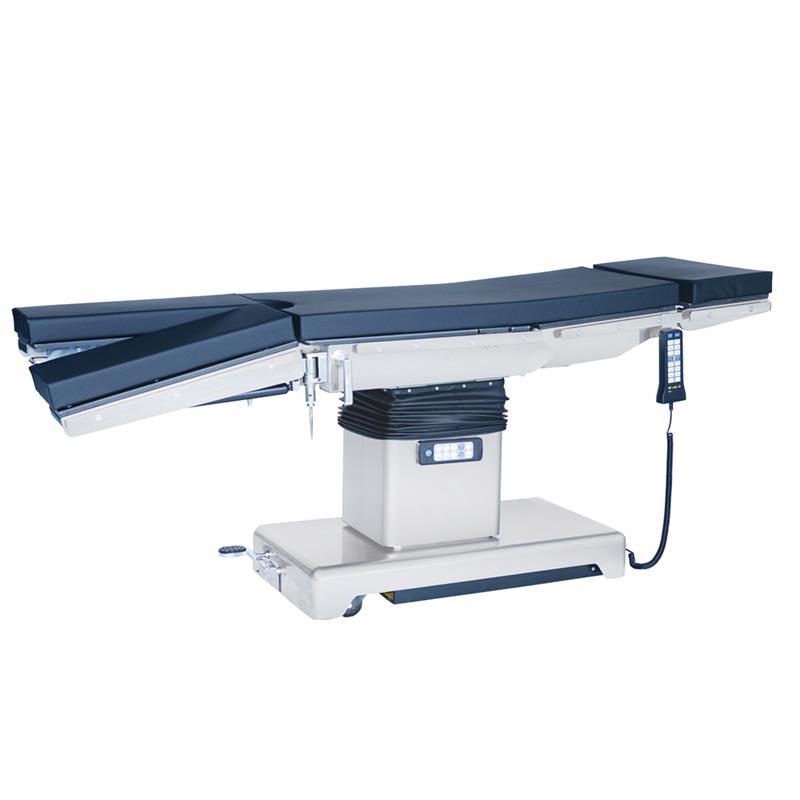

OLABO DL.C-I Operating Table
Product Introduction
The operating table (also called the operating bed) is a necessary tool for the doctor during the operation. It is the most important tool for arranging patients to make it more convenient for doctors to provide the operating environment. It is a machine used in hospitals for injuries and illness operations, maternal delivery, organ transplantation and other purposes.
Features
1. The tabletop adopts high quality of carbon plastic plate,which is convenient for X-ray photography.
2. AC and DC,dual remote control to control various actions
3. Quality stainless steel 304 is used for table support,base plate,column shield and rails on both sides of the table.
4. The mattress is wrapped with imported artificial leather.High-density memory sponge is formed in one piece,with no seam.
5. Imported brand LINAK motor,with no noise,long life.
6. Foot pedal brake device which is easy for moving the operating table.
7. The head board and leg plate are controlled by imported gas spring.Leg plate is split and detachable.
8. It has the function of auto-restoration.
9. One press to “∧” or “∨”.
Accessories
A Pair of Shoulder/Waist Support,A Pair of Arm Support,A Pair of Leg Plate,A Screen.
Parameter
Model
DL.C-I
Length
2000±100mm
Width
520±20mm
Height
Adjustment
(750~1100)±50mm
Tilt(left)/Tilt(right)
≥15°/≥15°
Trendelenburg/Rev-Trend
≥15°/≥15°
Head board
upwards
≥40°
Head board
downwards
≥90°
Back board
upwards
≥60°
Back board
downwards
≥30°
Waist board
lifting
100±20mm
Leg board
Upwards
≥15°
Leg board
Downwards
≥90°
Leg board
Outwards
≥180°
Lumbar upper
corner “∧ ”
≤150°
Lumbar lower
corner “∨”
≤120°
Main Voltage
AC
220V±22V,50±1Hz
Input power VA
300±10%
