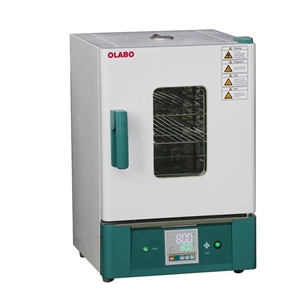

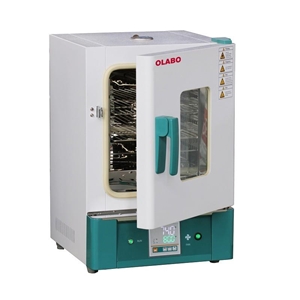

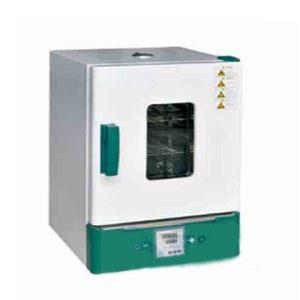

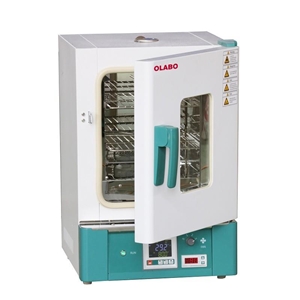

Hot air sterilizer
Product descriptions
1. The new vertical double air ducts circulate and supply air horizontally, and the temperature distribution in the working room is even.
2. Digital tube display microcomputer intelligent PID temperature controller.
3. Standard fan switch, high-brightness LED instrument operation indicator, high-temperature-resistant blower motor.
4. New anti-scald handle.
Specifications
| Model | GX-230B |
| Internal volume | 230L |
| Cycle way | Forced convection |
| Operating temperature range | RT+10-300℃ |
| Temperature resolution | 0.1℃ |
| Temperature fluctuation | ±1℃ |
| Temperature distribution accuracy | ±2.5% |
| Studio | Mirror stainless steel studio |
| Shell | Cold rolled steel plate, surface electrostatic spraying |
| Insulation | High quality rock wool board (with CE certification) |
| Heater | Stainless steel electric heating tube |
| Rated power | 3.0kW |
| Vent | φ28mm top (with test hole function) |
| Temperature control method | Dual temperature segment intelligence |
| Temperature setting method | Touch button setting |
| Temperature representation | Type B: Measuring temperature displayed on the upper row of four-digit digital tubes; Setting temperature: Displayed on the bottom row of four-digit digital tubes BE Type: Displayed on the upper part of the LCD screen for measuring temperature; Setting temperature: displayed on the bottom of the LCD |
| Timer | 0-9999 minutes (with timing waiting function) |
| Run function | Fixed value operation, timing operation, automatic stop |
| Additional features | Type B: sensor deviation correction, temperature overshoot self-tuning, internal parameter lock, power-off parameter memory BE type: mechanical independent temperature limiter, 4-speed 3-speed fan (230 type no fan speed control), sensor deviation correction , Temperature overshoot self-tuning, internal parameter lock, power-off parameter memory |
| Sensor | pt100 |
| Safety equipment | Type B: Over-temperature sound and light alarm BE Type: Mechanical independent temperature limiter, over-temperature sound and light alarm |
| Studio (width * depth * height mm) | 600*500*750 |
| Shape (width * depth * height mm) | 730*680*1250 |
| Outer packaging (width * depth * height mm) | 860*790*1400 |
| Number of partitions | 17 |
| Bulkhead | 15kg |
| Space between partitions | 35mm |
| Power supply (50/60HZ) rated current | AC220V/13.6A |
| Net weight/Gross weight (kg) | 94/120 |
| Partition | 2 |
| Shelf | 4 |
