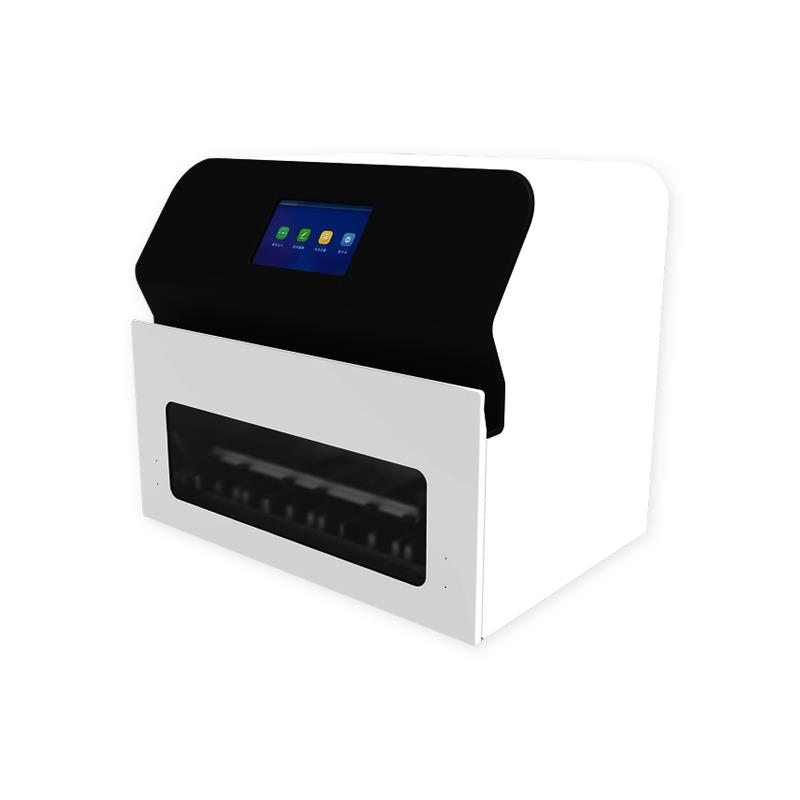

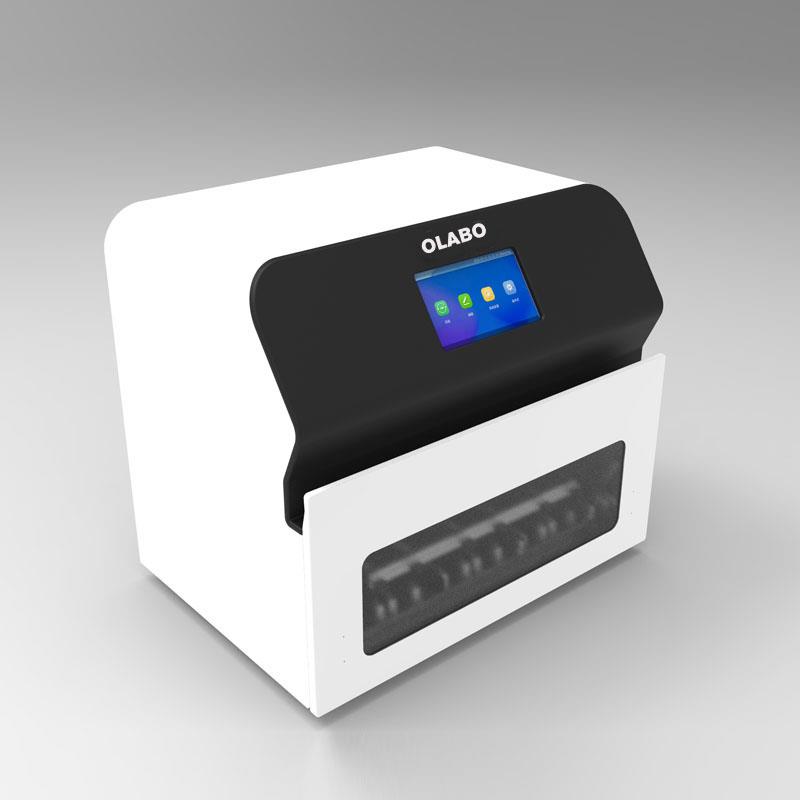

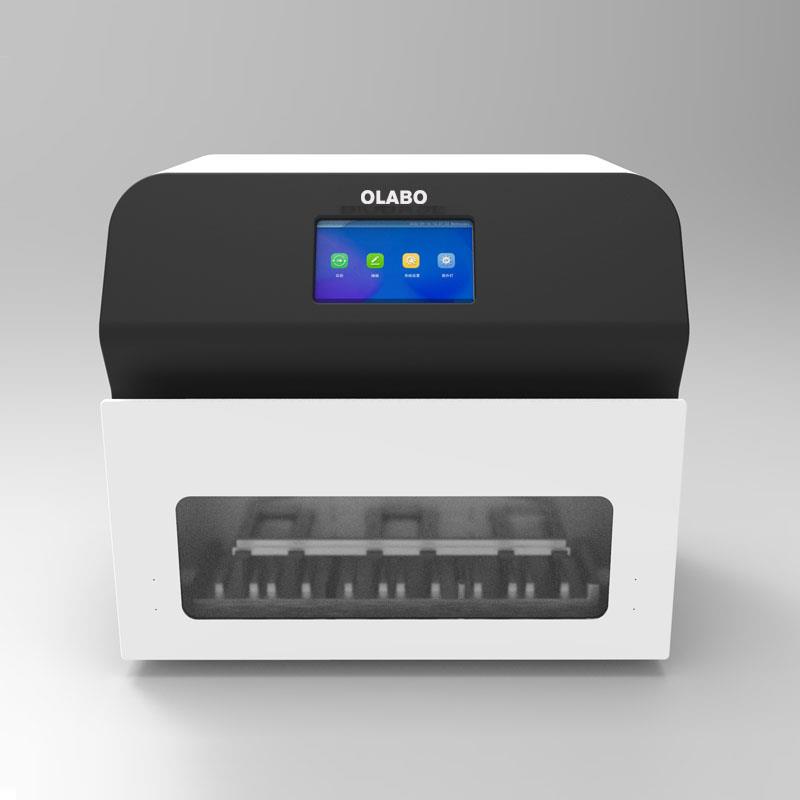

OLABO BNP48 Nucleic Acid Extractor System
Features
1. 7-inch touch screen, easy to use, fast response
2. User-defined cracking and elution temperature
3. UV disinfection fuction, time range 1min-24hour
4. Automatic control system, no need connect to computer
5. Free programming to meet the needs of different reagent
6. Open system, fully automatic, stable results and good repeatability
7. Extract rapidly 10-40 minutes, 32/48 samples can be extracted at the same time
Technical Parameter
Powerful program editing capabilities to meet different reagent needs.
U disk program import and export can be achieved
After the safety door is opened, the program operation will be automatically suspended, and the program can continue to run after the safety door closed
Model
BNP48
Sample Quantity
48
Processing Volume
20μL-1000μL
Sample Volume
20-500μL
Sample Throughput
48
Magnetic Bead Recovery
>98%
Extracting the Difference Between Holes
CV≤3%
Heating Temperature
8 independent heating modules, customize lysis and elution temperature (temperature range) according to your needs
Oscillating Mixing
Low, medium and high three gears are adjustable, and the fluctuation range can be adjusted with the reagent volume
Reagent Type
Magnetic bead open platform
Extraction Time
15-40 min/round (depending on the reagent used)
Internal Program
Be able to store >100 groups of programs
Program Management
Safety Door Design
Built-in Ait Duct
YES
Ultraviolet Irradiation
YES
Packing Size(W*D*H)mm
700*520*750
Gross Weight(kg)
80
