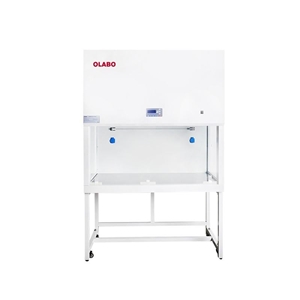

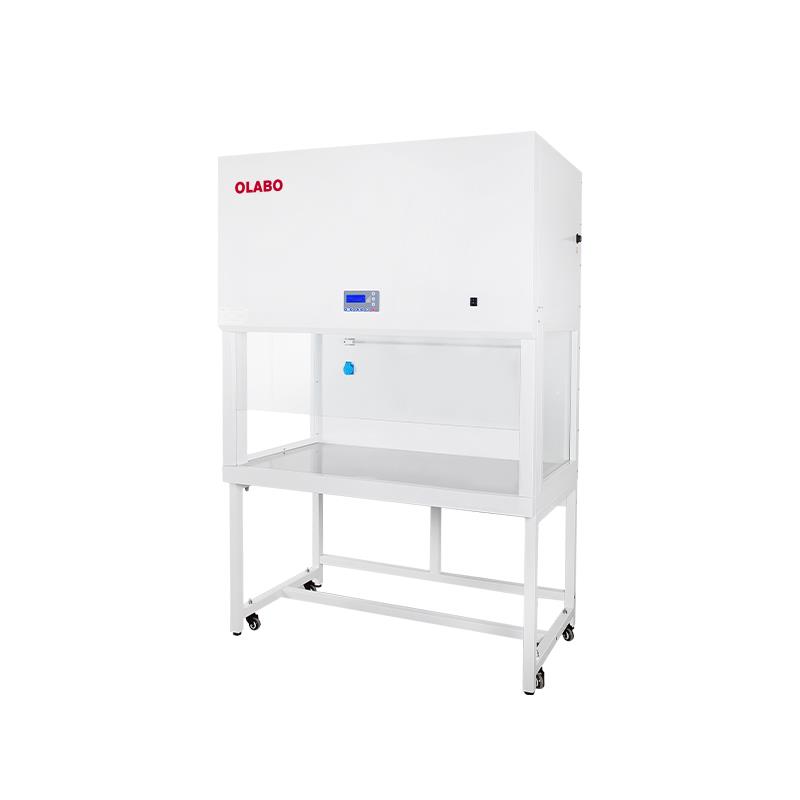

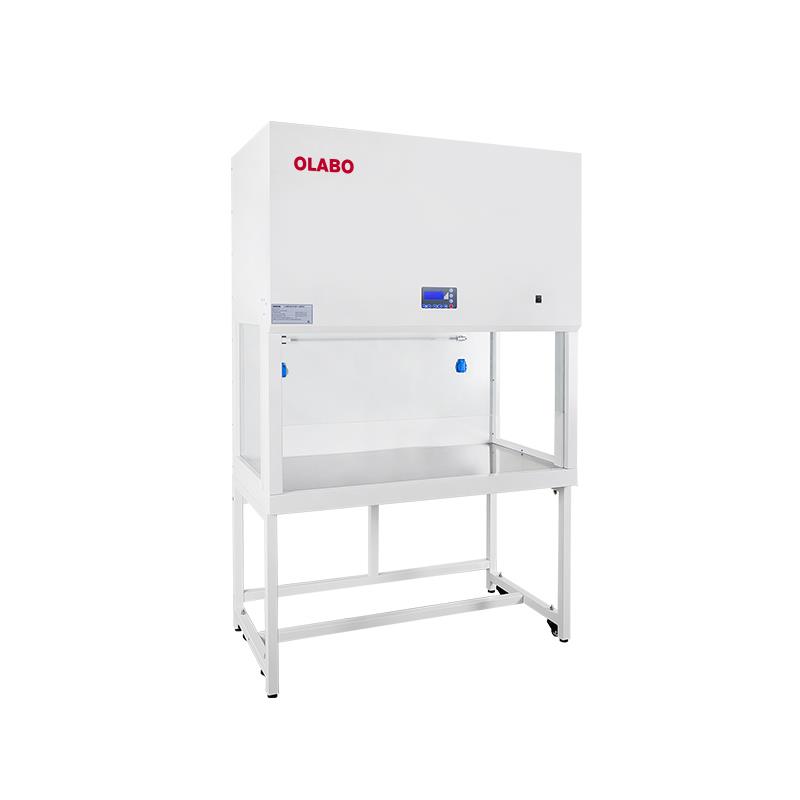

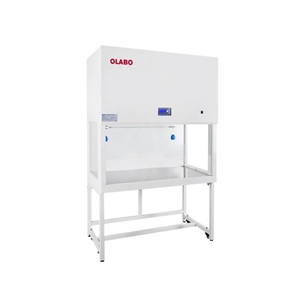

OLABO BBS-V1300 Laminar Flow Cabinet

OLABO BBS-V1300 Laminar Flow Cabinet

Product Introduction

Laminar Flow Cabinet is a work bench or similar enclosure, which creates a particle-free working environment by taking air through a filtration system and exhausting it across a work surface in a laminar or unidirectional air stream. The laminar flow cabinet is enclosed on the sides and kept under constant positive pressure in order to prevent the infiltration of contaminated room air.

Features

Product safety: the number of colonies ≤0.5CFU/30min;
1. Filtration efficiency: The filters are all high-efficiency filters without partitions, with a filtration efficiency of 99.999% for particles with a diameter of 0.3μm;
2. The working area adopts four sides (left and right sides, rear, bottom) positive pressure to surround the design working area to protect the product;
3. The fan and filter can be replaced and repaired at the front of the clean bench.
4. The box body is made of 1.2mm thick cold-rolled steel plate and the surface is electrostatic sprayed, which enhances the structural strength and makes the whole device more stable;
5. The work area table is made of stainless steel, which is beautiful and corrosion-resistant;
6. The control panel adopts a touch switch. The buttons are composed of fan button, lighting button, UV button, power button, socket button, glass door down button, glass door up button, air volume decrease button, and air volume increase button, which are easy to operate; The display content includes: fan speed, display time, UV lamp working time, filter working time;
7. The front window of the clean bench is an electric window with 5mm thick tempered glass, which is controlled by operating buttons, and can be stopped at a height within the range of travel, and has the function of power-off lock;
8. The clean bench is equipped with an air faucet to facilitate the experiment.
9. Lighting: ≥350lx.
10. The design of the top wire of the foot and the universal wheel of the clean table, the clean table can be moved by the universal wheel and can be fixed and leveled by adjusting the top wire of the foot.
11. The interlocking function of ultraviolet lamp, fan and fluorescent lamp, that is, when the fan and fluorescent lamp are working, the ultraviolet lamp cannot be turned on to protect the operator.

Technological Parameter
