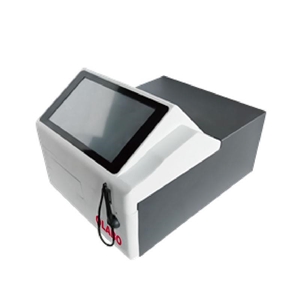

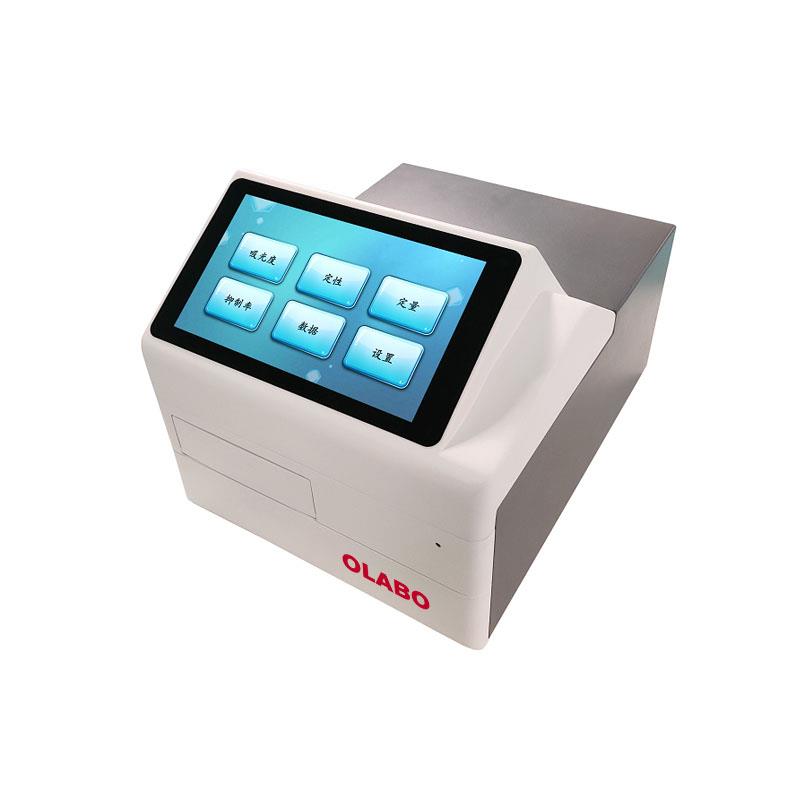

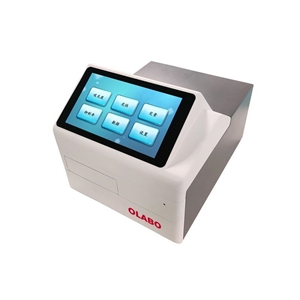

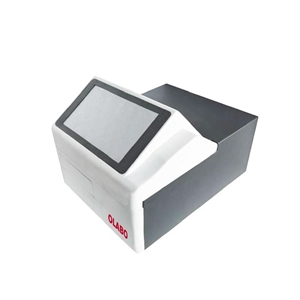

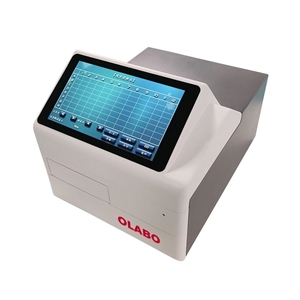

OLABO BK-EL10C ELISA Microplate Reader
Features
1. 8-channel vertical optical system.
2. Super fast reading speed of 7 seconds.
3. 10.1-inch Large Touch Screen with visual layout function, what you see is what you get.
4. Hardware: ARM architecture high-performance low-power processor, with ADI high-precision AD conversion chip,
the measurement is more accurate and stable.
5. Software: Self-developed core algorithm, with independent intellectual property rights, flexible use of multiple
calculation methods.
Technical Parameters
Model
BK-EL10C
MeasurementChannel
Vertical 8 optical channels;
Wavelength Range
400～800 nm
Filter
Standard four wavelengths of 405, 450, 492, 630nm; can be installed up to ten wavelengths (optional)
ReadingRange
0.000～4.000 Abs
LinearRange
0.000～3.000 Abs
Repeatability
CV≤1.0%
Stability
≤±0.003Abs
AbsorbanceAccuracy
Absorbance value [0.0~1.0], error≤±0.02Abs
Absorbance value [1.0~2.0], error≤±0.03Abs
WavelengthIndicationError
≤±2nm
WavelengthRepeatability
≤±1.5nm
Sensitivity
≥0.01 mg/L
ChannelDifference
≤0.02Abs
VibrationPlateFunction
3 kinds of vibration platefunction , adjustable 0~255 s ,
Display
10.1-inch Large Touch Screen
InputPower
60VA
PowerSupply
AC220V, 50Hz
Interface
RS-232
PackingSize (W*D*H)
535mm*395mm*395mm
Gross Weight
13kg
