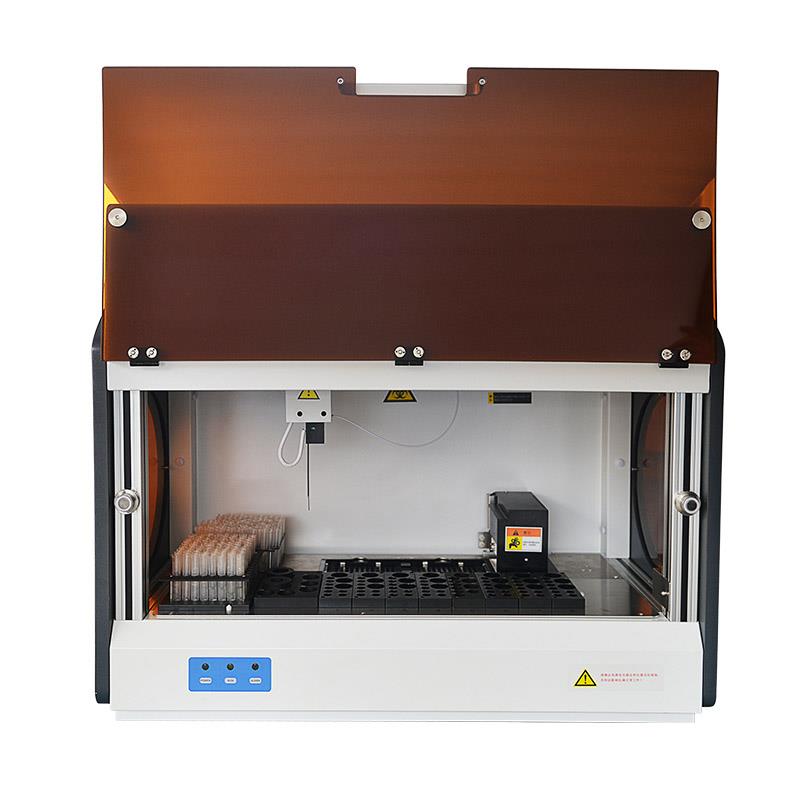

OLABO 1000 Auto ELISA Processor

Features:

1. 1 robotic arm, 1 pipetting probe(10~1000μl).

2. 2 unit 96 well microplates(independent incubating).

3. 1 unit reader& washer (auto reading and washing).

4. Software Module

User-friendly Windows system; LIS system available.

5. Sample Module

Hitech teflon coating probe to prevent cross contamination.

6. Sample& Reagent& Dilution Rack Module

Original sample tubes available；Rack positions programmable.

7. Microplate washer& Reader Module

Modularized automatic control reading and washing system.

Technical Parameters

Model

OLABO1000

Sample Unit

Sample Racks

80 sample positions(tubes 13mm)

Pipetting

10~1000ul

Dispensing System

1 aspirating-dispensing probe with X-Y-Z movement;

Reagent Unit

Reagent Racks

8+1reagent racks, editable

Pipetting Range

10~1000ul,1ul stepping

Pipetting precision

(100ul) CV≤0.5%

DispensingTime

5 minutesto whole96well microplates

Incubation Unit

Incubation

2 independentIncubators

Temperature Range

RT to 45 °C

Temperature Accuracy

±0.5°C

Washing Unit

WashingProbes

Two line 8-nozzle manifolds

Wash Containers

2 wash buffers 2L, 1 distilled water, 1 waste water

Washing Residual

<2μl

Reading Unit

ReadingChannels

8 independent photometric channels,mono and dichromatic reading

Absorbance

0.0 ~3.0 OD

Spectral Range

400-700nm

Optical Filters

2standardfilters (450,630nm); 2 more on request (405nm/450nm/492nm/630nm)

Data Management

Software

Windows 7

LIS System

Bi-direction,support HL7 protocol

Results

Absorbance and results reviewable by software

Printer

External optional

Working Conditions

Power Supply

AC220V±10%,50/60Hz, 110V±10%,60Hz, 400W

Temperature

10～30℃

Humidity

30-80%

Size & Weight

External Size (W*D*H)

879*660*764mm

Net Weight

112kg

Package Size (W*D*H)

1020*810*1240mm

Gross Weight

160kg
