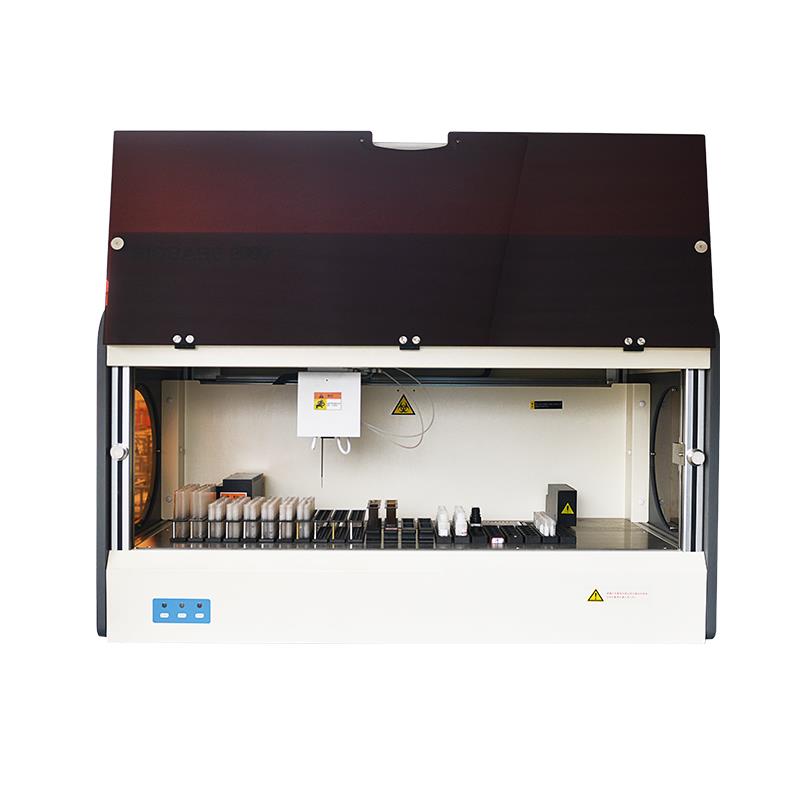

OLABO 2000 Auto Auto ELISA Processor
Features
1. 1 robotic arm, 2 pipetting probe(10~1000μl).
2. 4 unit 96 well microplates(independent incubating).
3. 1 unit reader& washer (auto reading and washing).
4. Software Module
User-friendly Windows system;LIS system available.
5. Sample Module
Hitech teflon coating probe to prevent cross contamination.
6. Sample & Reagent & Dilution Rack Module
Original sample tubes available; Rack positions programmable.
7. Microplate Reader & Washer Module
Modularized automatic control reading and washing system.
Technical Parameters
Model
OLABO 2000
Sample Unit
Sample Racks
552 sample positions(tubes 13mm)
Pipetting
8~1000ul
Dispensing system
2 aspirating-dispensing probe( X-Y-Z movement)
Reagent Unit
Reagent Position
23 reagent racks, editable
Pipetting Range
8~1000ul, 1ul stepping
Pipetting Precision
(100ul )CV≤0.5%
Washing Unit
Dispensing Time
4 minutes to whole 96 to microplates
Washing Probes
Two line 8-nozzle manifolds
Wash Containers
Cleaning fluid(15L),waste water(25L),Buffer 1(5L), Buffer 2(2L),
Buffer 3(2L), Buffer 4(2L),
with liquid level-sensing,
liquid shortage and full alarm
Waste Containers
25L with waste full sensor
Washing Residual
<2μl
Reading Unit
Reading Channels
8 independent photometric channels, mono
anddichromatic reading
Absorbance
0.0~3.0 OD
Spectral Range
400-700nm
Optical Filters
2standard filters (450,630nm); 2 more on request (405nm/450nm/492nm/630nm)
Reading Accuracy
±1% from 0.0~1.5 OD, ±2% from 1.5 to 3.0 OD
Data Management
Software System
Windows 7
LIS System
Bi-direction,support HL7 protocol
Results
Absorbance and results reviewable by software
Printer
External optional
Working Conditions
Power Supply
AC220V±10%,50/60Hz, 110V±10%,60Hz, 400W
Temperature
10～30℃
Humidity
30-80%
Size & Weight
External Size (W*D*H)
1235*710*880mm
Net Weight
146kg
Package Size (W*D*H)
1380*860*1435mm
Gross Weight
220kg
